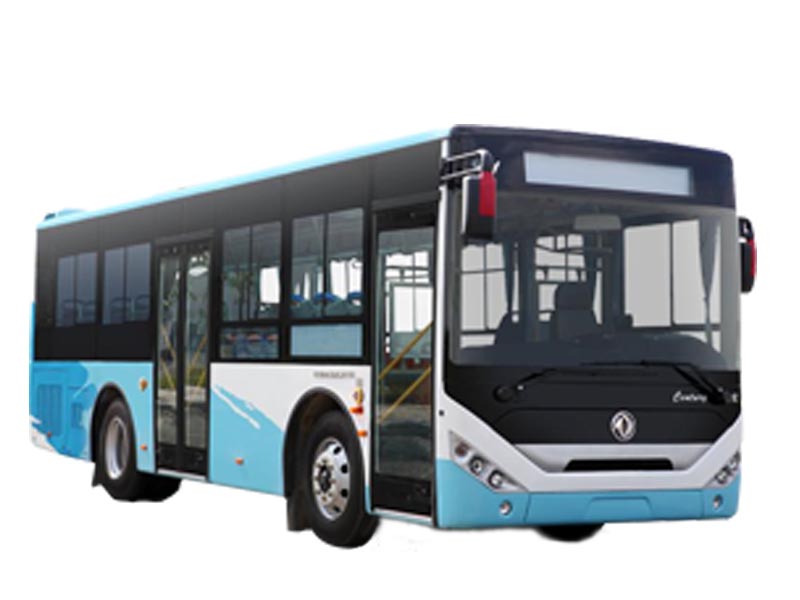

Dongfeng EQ6930 9m City Bus
- Chassis Dongfeng chassis
- Engine Yuchai engine
- Seats number 31+1
We're here to help:Easy ways to get the answers you need.
.jpg)
We're here to help:Easy ways to get the answers you need.
Feature
parameter
|
Dimensions |
|
|
|
Overall Length |
9340mm |
|
|
Overall Width |
2500mm |
|
|
Overall Height |
2980mm |
|
|
Wheelbase |
4500 mm |
|
|
Front Overhang |
2010 mm |
|
|
Rear Overhang |
2830 mm |
|
|
Interior Height |
2280mm |
|
|
First Step Height |
360mm |
|
|
Gross Vehicle Weight |
13500kg |
|
|
Seats Capacity |
31+1 |
|
|
Max Speed |
69 km/h |
|
|
|
|
|
|
Engine |
|
|
|
Engine Model |
YC6J200-42 |
|
|
Engine Type |
in-line, 6cylinders, 4-stroke,water-cooled |
|
|
|
turbocharged, inter-cooled |
|
|
Position/Fuel |
Rear/diesel |
|
|
Max Output |
147kw |
|
|
Max Torque |
730Nm/rpm |
|
|
Displacement |
6500 ml |
|
|
Emission Standard |
National Ⅳ |
|
|
|
|
|
|
Chassis |
|
|
|
Chassis Model |
EQ6900H4AC (DFAC) |
|
|
Gear Box |
QJ805 |
|
|
Clutch |
φ395 Single plate, dry friction, helical spring |
|
|
|
hydraulic control with air power |
|
|
Front Axle |
Dongfeng Dana (4.5T) |
|
|
Rear Axles |
Dongfeng Dana (9T) |
|
|
Suspension |
Leaf spring : front 3 rear 4 ; Shock absorber: DF ZF |
|
|
Steering |
Power steering |
|
|
Brake |
Dual circuit full air brake |
|
|
|
Exhaust brake, front disc and drum |
|
|
Fuel Tank |
135L |
|
|
Tyres |
10R22.5-14R |
|
|
Battery/Generator |
6-QA-165 |
|
|
Others |
Adjustment arm; air dryer |
|
|
|
Copper water tank |
|
|
Body |
|
|
|
Body Type |
Semi-integral body |
|
|
Interior Trimming |
Molded plastic front, column extrusion molding |
|
|
Side Window |
Embedded type sliding window |
|
|
windscreen |
Front : laminated glass; Rear : toughened glass |
|
|
Defroster |
Defroster with changeable power 24V、170W |
|
|
Windscreen Wiper |
opposed electric wiper system |
|
|
Door |
Front single door,and middle pneumatic double swing-in passenger door |
|
|
|
alluminum alloy door plank |
|
|
Rearview system |
Steel frame type asymmetric manual rearview mirror |
|
|
Others |
Half width sunshade curtain, inside rearview mirror, |
|
|
|
2 fire extinguishers (4KG), the electromagnetic |
|
|
|
safety hammer (4), DC800A Skylight |
|
