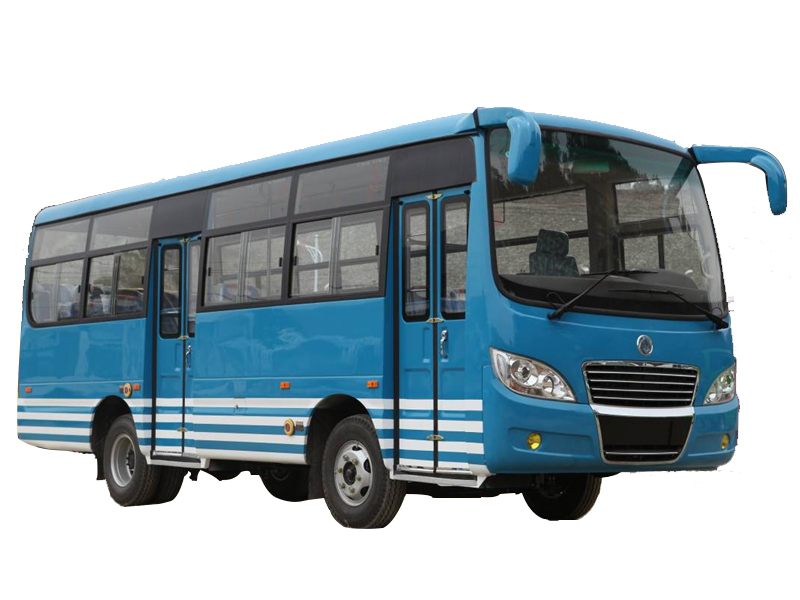

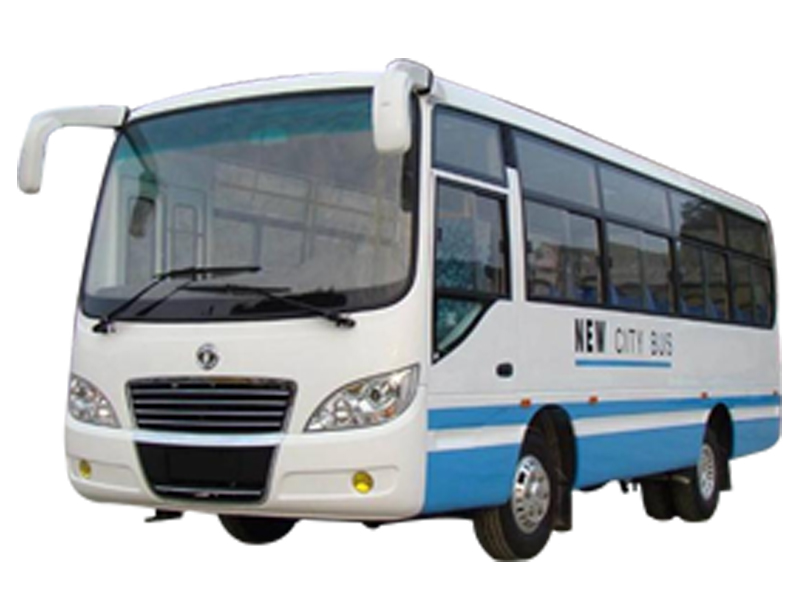

Dongfeng EQ6710 City Bus
- Chassis Dongfeng chassis
- Seats number 18+1/38
We're here to help:Easy ways to get the answers you need.
We're here to help:Easy ways to get the answers you need.
Feature
parameter
|
Dimensions |
|
|
|
Overall Length |
7120mm |
|
|
Overall Width |
2250mm |
|
|
Overall Height |
2950,3150mm |
|
|
Wheelbase |
3300mm |
|
|
Front Overhang |
1730mm |
|
|
Rear Overhang |
2090mm |
|
|
Interior Height |
1860mm |
|
|
First Step Height |
400mm |
|
|
Gross Vehicle Weight |
7000kg |
|
|
Seats Capacity |
18+1/38 |
|
|
Max Speed |
69km/h |
|
|
|
|
|
|
Engine |
|
|
|
Engine Model |
YC4FA115-40 |
|
|
Engine Type |
in-line, 4cylinders, 4-stroke, |
|
|
|
turbocharged, inter-cooled |
|
|
Position/Fuel |
Front/diesel |
|
|
Max Output |
85kw |
|
|
Max Torque |
300Nm/rpm |
|
|
Displacement |
2982ml |
|
|
Emission Standard |
National Ⅳ |
|
|
|
|
|
|
Chassis |
|
|
|
Chassis Model |
EQ6680T4AC |
|
|
Gear Box |
JK140 Direct gears |
|
|
Clutch |
Single plate, dry friction, helical spring |
|
|
|
Clutch booster |
|
|
Front Axle |
DFDC Axle(2.3T) |
|
|
Rear Axles |
DFAC (4.3T) |
|
|
Suspension |
Leaf spring : front 9 rear 11 |
|
|
Steering |
Mechanical steering |
|
|
Brake |
Dual circuit full air brake |
|
|
Fuel Tank |
90L |
|
|
Tyres |
7.00-16 |
|
|
Battery/Generator |
6-QA-105×2/55A |
|
|
|
|
|
|
Body |
|
|
|
Body Type |
Non-integral body construction |
|
|
Interior Trimming |
AC interior trimming |
|
|
Side Window |
upper:fixed; bottom: sliding sash |
|
|
windscreen |
Front : laminated glass; Rear : toughened glass |
|
|
Defroster |
Defroster with changeable power 24V、130W |
|
|
Windscreen Wiper |
opposed electric wiper system |
|
|
Door |
Front and rear set pneumatic folding passenger door |
|
|
Rearview system |
Rabbit ear rearview mirror |
|
|
Others |
domestic brand painting |
|
|
|
Curtains, air horn; half rolled sun visor |
|
|
|
PVC floor covering; Two 700A skylight; interior mirror |
|
