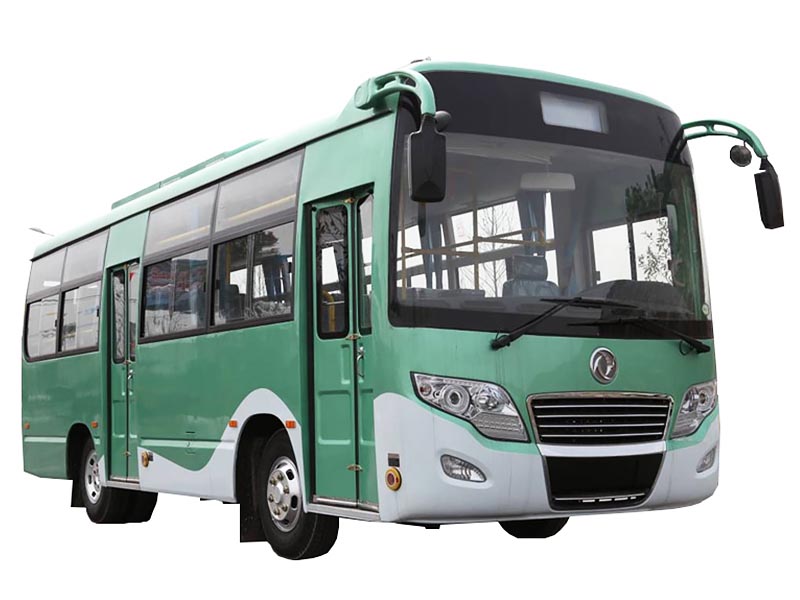

Dongfeng EQ6751 7m City Bus

Dimensions

Overall Length

7540 mm

Overall Width

2360 mm

Overall Height

3160 mm

Wheel Base

3650 mm

Front Overhang

1780 mm

Rear Overhang

2110mm

Interior Height

1930mm

First Step Height

360 mm

Gross Vehicle Weight

9000 kg

Seats Capacity

18+1/56

Engine

Engine Model

CY4102-CE4B/CA4DC2-12E4/YC4FA130-40

Engine Type

in-line,water-cooled,4strokes,High pressure common rail

Turbocharged, inter-cooled

Position/Fuel

Front/disel

Max Torque

420/320/340

Max Output

100/91/95kw

Displacement

3856/3168/2982

Emission Standard

Euro Ⅳ

Chassis

Chassis Model

EQ6733T4AC(DFAC)

Gear box

Clutch

φ350 Single plate, dry friction, diaphragm spring, clutch booster

diaphragm spring, clutch booster

Front Axle

Dongfeng Dana(3.5T）Ф320X150

Rear Axles

Dongfeng Dana (5.5T) Ф310X155

Suspension

Leaf spring front 9 rear 11

Steering

Power steering

Brakes

Dual circuit air brake

Fuel Tank

90L

Tyres

8.25R16-14PR

Parking Brake

Energy stored spring brake

Battery

6-QA-105×2/55A(YC)、70A（CY/CA）

Others

Copper water tank ,air horn,engine preheating device

Body

Body Type

Non-integral body construction

Interior Trimming

common interior trimming

door&door pump

Front and middle set pneumatic folding door

Side Window

Upper window fixed and sliding sash on the bottom

Light green

Windscreen

Front : laminated glass; Rear : toughened glass

Defroster

Defroster with changeable power 24V、130W

Windscreen Wiper

opposed electric wiper system

Rear reflecting

Manual mirrior

Seats

Common bus seats

Painting

Domestic brand paint

Others

PVC floor cover; plat floor; half rolled sun visor

Air horn; 700A Skylight;
