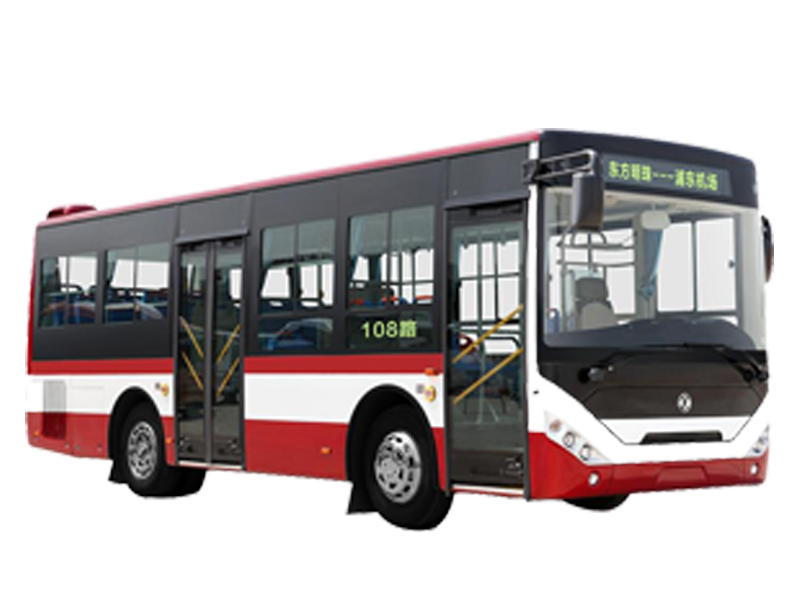

Dongfeng EQ6830 8m City Bus
- Chassis Dongfeng chassis
- Engine Yuchai engine
- Seats number 23+1
We're here to help:Easy ways to get the answers you need.
We're here to help:Easy ways to get the answers you need.
Feature
Main Feature:
parameter
|
Dimensions |
|
|
|
Overall Length |
8290 mm |
|
|
Overall Width |
2360 mm |
|
|
Overall Height |
2850/3060 mm |
|
|
Wheelbase |
4000 mm |
|
|
Front Overhang |
1860 mm |
|
|
Rear Overhang |
2430 mm |
|
|
Interior Height |
1995 mm |
|
|
First Step Height |
360 mm |
|
|
Gross Vehicle Weight |
10400 kg |
|
|
Seats / Capacity |
23+1 / 63 |
|
|
Engine |
|
|
|
Engine Model |
YC4D140-45/YC4E160-42 |
|
|
Engine Type |
in line, 4 cylinders, turbocharged, inter-cooled |
|
|
|
(SCR system) |
|
|
Position/Fuel |
Rear/Diesel |
|
|
Max Output |
103 /118 kw |
|
|
Max Torque |
450/550 Nm/rpm |
|
|
Displacement |
4214/4260 ml |
|
|
Emission Standard |
Euro Ⅳ |
|
|
Chassis |
|
|
|
Chassis Model |
EQ6800T4AC（DFAC） |
|
|
Gear Box |
CA5-75 |
|
|
Clutch |
φ380 Single plate, dry friction, helical spring |
|
|
|
hydraulic control with air power |
|
|
Front Axle |
Hubei axle (3.9T) Ф400X130 |
|
|
Rear Axles |
Hubei axle（6.5T）Ф400X155 |
|
|
Suspension |
Leaf spring: front 11 rear 12; DF ZF |
|
|
Brake |
Dual circuit full air brake |
|
|
|
Spring brake |
|
|
Fuel Tank |
135L |
|
|
Tyres |
8.25-20 |
|
|
Battery |
6-QA-165×2/70A,28V |
|
|
Others |
SCR system; air dryer; copper water tank |
|
|
Body |
|
|
|
Body Type |
Non-integral body |
|
|
Interior Trimming |
Molded plastic front, column extrusion molding |
|
|
Side Window |
upper:fixed, middle: sliding sash, buttom: fixed |
|
|
windscreen |
Front : laminated glass; Rear : toughened glass |
|
|
Defroster |
Defroster with changeable power 24V、130W |
|
|
Windscreen Wiper |
opposed electric wiper system |
|
|
Rearview system |
Steel frame type symmetric manual rearview mirror |
|
|
Others |
Engine speed limit 69km/h; PVC floor, floor, |
|
|
|
semi web sunshade curtain, electric fan, |
|
|
|
4KG fire extinguisher (2), endoscopic, safety hammer (4), |
|
