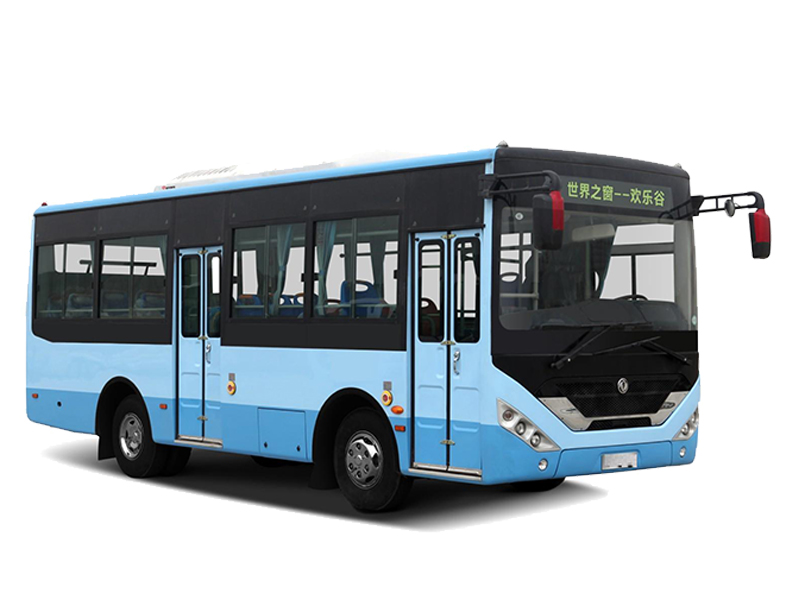

Dongfeng EQ6770 7m City Bus
- Chassis Dongfeng chassis
- Engine Yuchai engine
- Seats number 25+1/48
We're here to help:Easy ways to get the answers you need.
We're here to help:Easy ways to get the answers you need.
Feature
parameter
|
Dimensions |
|
|
|
Overall Length |
7740 mm |
|
|
Overall Width |
2340 mm |
|
|
Overall Height |
3210 mm |
|
|
Wheelbase |
3650 mm |
|
|
Front Overhang |
1780 mm |
|
|
Rear Overhang |
2310 mm |
|
|
Interior Height |
2170 mm |
|
|
First Step Height |
360 mm |
|
|
Gross Vehicle Weight |
10500 kg |
|
|
Seats Capacity |
25+1/48 |
|
|
|
|
|
|
Engine |
|
|
|
Engine Model |
YC4D140-45 |
|
|
Engine Type |
4 cylinders, turbocharged, inter-cooled |
|
|
|
|
|
|
Position/Fuel |
Rear/Diesel |
|
|
Max Output |
103 kw |
|
|
Max Torque |
450 Nm/rpm |
|
|
Displacement |
4.214 L |
|
|
Emission Standard |
National Ⅳ |
|
|
|
|
|
|
Chassis |
|
|
|
Chassis Model |
EQ6750HN4AC（DFAC） |
|
|
Gear Box |
JK5S550 |
|
|
Clutch |
φ350 Single plate, dry friction, helical spring |
|
|
|
hydraulic control with air power |
|
|
Front Axle |
DFAC (3.5T) Ф360X130 |
|
|
Rear Axles |
DFAC（6.5T）Ф360X160 |
|
|
Suspension |
Leaf spring front 3 rear 4 Shock absorber: DFZF |
|
|
Brakes |
Dual circuit air brake, Parking brake |
|
|
Fuel Tank |
135L |
|
|
Tyres |
7.50-20-14PR |
|
|
Battery |
6-QW-120DF / 70A |
|
|
Others |
Air dryer,cooper water tank |
|
|
|
|
|
|
|
|
|
|
Body |
|
|
|
Body Type |
Semi-integral body |
|
|
|
Second step |
|
|
Interior Trimming |
Molded plastic front, column extrusion molding |
|
|
Side Window |
Fully sealed on upper and bottom window |
|
|
|
Alluminium alloy sliding window in the middle part |
|
|
windscreen |
Front : laminated glass; Rear : toughened glass |
|
|
Defroster |
Defroster with changeable power 24V、170W |
|
|
Windscreen Wiper |
opposed electric wiper system |
|
|
AC system |
Dongfeng Pannico roof-mounted A/C |
|
|
|
single or double cooling system |
|
|
Others |
Through-type LED top lamp; High brake lamp |
|
