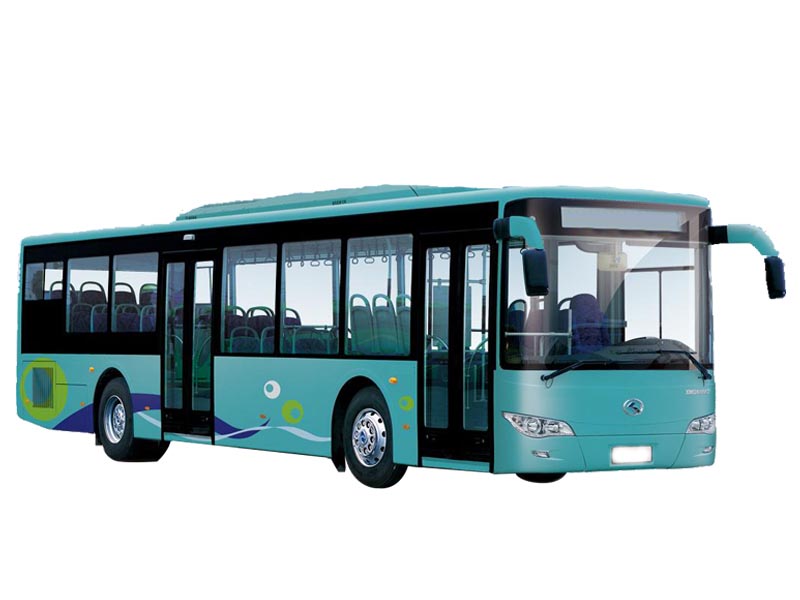

Dongfeng EQ6110 10m City Bus
- Chassis Dongfeng chassis
- Engine CNG engine or Diesel engine
- Seat capacity 23-40
We're here to help:Easy ways to get the answers you need.
.jpg)
We're here to help:Easy ways to get the answers you need.
Feature
parameter
|
Dimension |
Weight |
||||
|
Unit mm |
Unit kg |
||||
|
Length |
10830 |
Max. Permission loading（kg） |
13000 |
||
|
width |
2480 |
Wheel treed |
5000/8000 |
||
|
Height |
2990(NO AC) /3155(with AC) |
Seat |
23-40 |
||
|
Wheel base |
5370 |
Gas consumption （m3/100km）/oil consumption under limited condition （L/100km） |
27 |
||
|
Serial NO |
Chassis |
Standard specification |
Comment |
||
|
1 |
model |
EQ6100KSDN3G |
|
||
|
2 |
Clutch |
Single plate，dry type spiral spring, hydraulic auxiliary system |
|
||
|
3 |
Gear box |
QJ605 Manual mechanical，automatic，5 forward gears and 1 backward gear model：model:QJ605 |
|
||
|
4 |
Front axle |
End fist structure，I-beam structure Model：30NS09H-00005 capacity: 5.5T |
|
||
|
5 |
Rear axle |
Integral housing，single grade decelerate，model：24BS06C-00005, capacity: 8T |
|
||
|
6 |
suspension |
Leaf spring dual-effectual drum type absorber，multiple spring（12/13） |
|
||
|
7 |
wheel |
9.00-20 |
Optional 10.00-20 |
||
|
8 |
Steering |
power steering |
|
||
|
9 |
CNG Cylinder capacity (L) |
80×5 |
|
||
|
10 |
driving brake |
Dual circuit air brake system drum type brake |
|
||
|
11 |
parking brake |
Spring storage brake |
|
||
|
12 |
Assistant brake |
None |
Optional：Eddy current retarder |
||
|
13 |
Central lubrication |
None |
Optional |
||
|
engine |
|||||
|
model |
NQ150N |
||||
|
fuel type |
CNG |
||||
|
Displacement (mL) |
5638 |
||||
|
Max. |
110/2600 |
||||
|
Max.torque/rotational speed(N.m/rpm) |
520/1200～1600 |
||||
