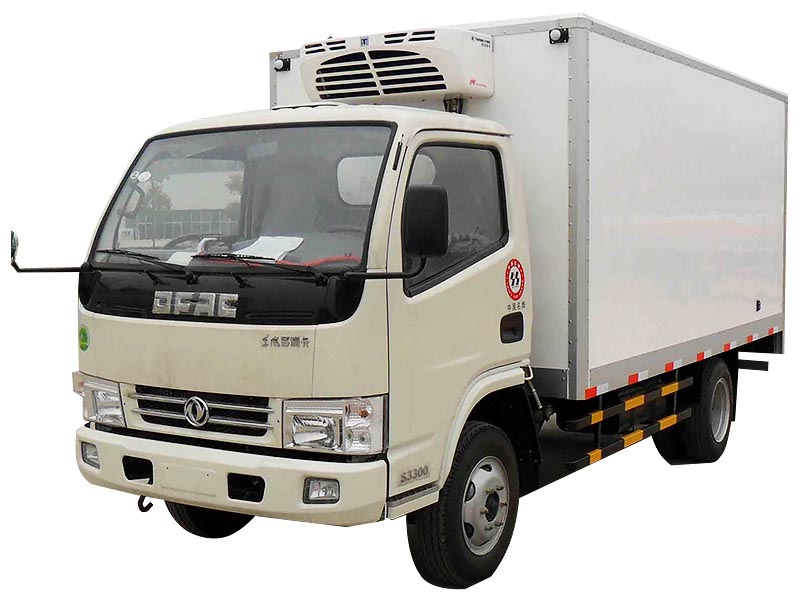

Dongfeng EQ1040 Refrigerator Truck
- Chassis Dongfeng chassis
- Engine chaochai
- Freezer system Hanxue, Carrier or Thermo King unit
We're here to help:Easy ways to get the answers you need.
We're here to help:Easy ways to get the answers you need.
Feature
parameter
|
Drive mode |
4×2 |
|
|
Chassis model |
EQ1040 |
|
|
Engine |
Model |
CY4102-C3F |
|
Max. power(KW) |
70 |
|
|
Displacement（ml） |
3856 |
|
|
Type OF Fuel |
Diesel |
|
|
Cab |
CPB12-K |
102×120 |
|
Capacity |
3 persons |
|
|
No of Spring leaves |
8/9+5 |
|
|
Tyre |
Size |
7.00-16 |
|
Air conditioner |
A/C |
|
|
Dimensions |
Outer dimension (mm) |
5970×1980×2970 |
|
Wheel base (mm) |
3650 |
|
|
Front/Rear tread(mm) |
1506/1442 |
|
|
Appr./Depa. angel (°) |
19/13 |
|
|
Performance |
Max. speed（km/h) |
90 |
|
Mass |
Payload （kg） |
1735 |
|
Curb weight(（kg） |
2565 |
|
|
G.V.W （kg） |
4495 |
|
|
Specifications of Van |
Overall dimension of body (mm) |
4700×1900×1600 |
|
Thickness of van (mm) |
100 |
|
|
Inside and outside of van's material |
FRP(Fiber Reinforced Plastics) |
|
|
Middle of van's material |
Polyurethane |
|
|
Insulation layer |
Under 120kPa high pressure,overall foam |
|
|
Rear doorpost |
stainless steel |
|
|
ventilation opening |
yes |
|
|
Refrigerating capacity |
4689 |
|
|
Refrigerant |
404A |
|
|
Min. temperature(℃) |
-15 |
|
|
Optional Carrier and Thermo King freezer unit |
||
