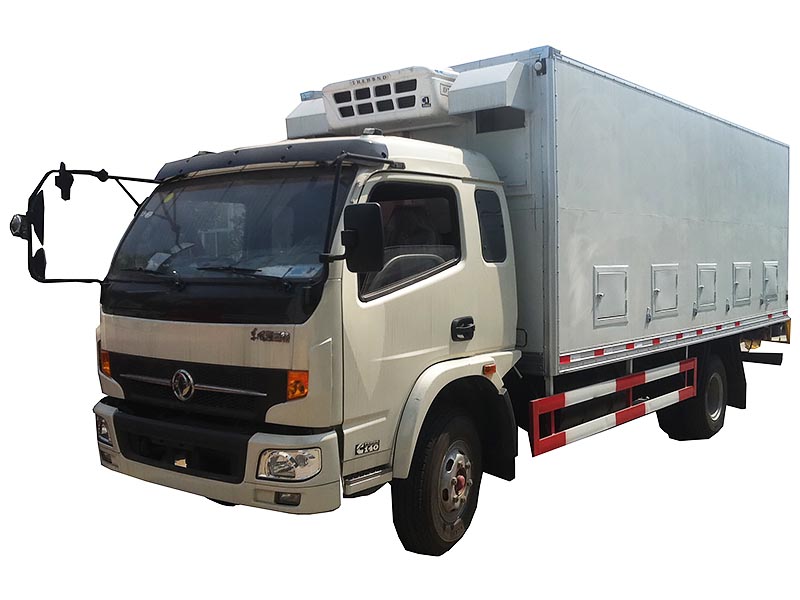

Dongfeng DFA1045 Refrigerator Truck
- Chassis Dongfeng chassis
- Engine Cummins engine
- Freezer system Hanxue, Carrier or Thermo King unit
We're here to help:Easy ways to get the answers you need.
We're here to help:Easy ways to get the answers you need.
Feature
parameter
|
Dimension(mm) |
|
|
Outer |
5995x2090x2560 |
|
Wheel Base(mm) |
3300 |
|
Tread(F/R)(mm) |
1586/1530 |
|
F/R suspension |
1115/1580 |
|
Weight(kg) |
|
|
Curb Weight(kg) |
2750 |
|
Payload(Kg) |
5000 |
|
G.V.W(kg) |
6850 |
|
Engine |
|
|
Engine type |
EQB125-30 |
|
Emission standard |
Euro III |
|
Power |
92/2800 |
|
Torque |
410/1500 |
|
Bore*Stroke(mm) |
102x120 |
|
Displacement(ml) |
3922 |
|
Performance |
|
|
Max Speed(kg/h) |
105 |
|
Max Gradeability |
30 |
|
Min Turning Radius(m) |
7.5 |
|
Power steering |
Equipped |
|
Brake |
air |
|
Battery |
24V |
|
Tire |
7.5R16 |
|
Cabin |
|
|
Heater |
Equipped |
|
Air conditioner |
Option |
|
Air conditioner |
Optional |
|
Centrul Lock and Power Window |
Optional |
|
Specification of freezer van |
|
|
Overall dimension of body (mm) |
4150×1900×1600 |
|
Thickness of van (mm) |
100 |
|
Inside and outside of van's material |
FRP(Fiber Reinforced Plastics) |
|
Middle of van's material |
Polyurethane |
|
Insulation layer |
Under 120kPa high pressure,overall foam |
|
Rear doorpost |
stainless steel |
|
ventilation opening |
yes |
|
Refrigerating capacity |
4689 |
|
Refrigerant |
404A |
|
Min. temperature(℃) |
-20 |
