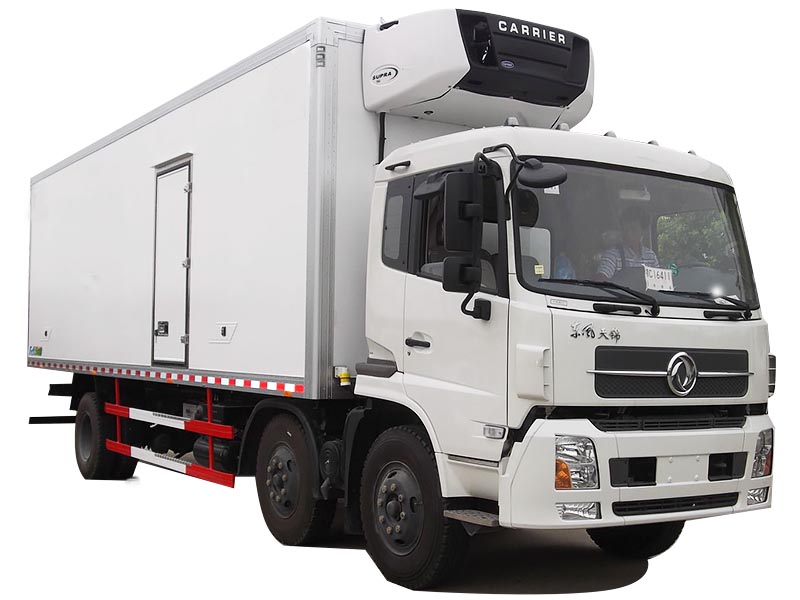

Dongfeng DFL1160 Refrigerator Truck
- Chassis Dongfeng chassis
- Engine Cummins engine
- Freezer system Hanxue, Carrier or Thermo King unit
We're here to help:Easy ways to get the answers you need.
We're here to help:Easy ways to get the answers you need.
Feature
parameter
|
Drive mode |
6×2 |
||||
|
Engine |
Model |
Cummins B190 33 |
|||
|
Type |
6-cylinder in line, turbocharging, inter cooling, mechanical injection pump, built-in EGR |
||||
|
Max. power(Kw/rpm) |
140/2500 |
||||
|
Max. torque(N.m/rpm) |
670/1300-1500 |
||||
|
Cylinder bore ×Stroke(mm) |
102×120 |
||||
|
Displacement(ml) |
5900 |
||||
|
Type of fuel |
Diesel |
||||
|
Compression ratio |
(17.3±0.5）:1 |
||||
|
Cab |
D530 |
one and a half rows |
|||
|
Capacity |
3 persons |
||||
|
Gearbox |
Type |
DF6S900(1) |
|||
|
Max. torque(N.m) |
900 |
||||
|
Clutch |
Φ395mm |
push-type diaphragm spring clutch |
|||
|
Frame H×W× T(mm) |
250×80×(7+4) |
||||
|
Axles |
Front axle(Kg) |
3600×2 |
|||
|
Rear axle(Kg) |
10000 |
||||
|
No. of spring leaves |
10/10/10+8 |
||||
|
Tyre |
Size |
9.00-20 |
|||
|
Air conditioner |
A/C |
||||
|
Dimensions |
Overall dimension(mm) |
11000×2500×2840 |
|||
|
Inner dimension(mm) |
8600×2294×600 |
||||
|
Wheel base(mm) |
1700+5100 |
||||
|
Front/Rear tread(mm) |
1913/1913,1860 |
||||
|
App./Dep. angel (°) |
23/12 |
||||
|
Performance |
Max. speed(Km/h) |
90 |
|||
|
Max. gradeability(%) |
30 |
||||
|
Min. turning diameter(m) |
17 |
||||
|
Mass |
Payload(Kg) |
13,000 |
|||
|
Curb weight(Kg) |
7,850 |
||||
|
G.V.W(Kg) |
20,860.00 |
||||
|
Specification of refrigerator |
Overall dimension of body (mm) |
6000×2260×2300 |
|||
|
Refrigerating capacity |
4689 |
||||
|
Refrigerant |
404A |
||||
|
Inside and outside of van's material |
FRP(Fiber Reinforced Plastics) |
||||
|
Middle of van's material |
Polyurethane |
||||
|
Insulation layer |
Under 120kPa high pressure,overall foam |
||||
|
Rear doorpost |
stainless steel |
||||
|
ventilation opening |
yes |
||||
|
Min. temperature(℃) |
-15 |
||||
|
adopt to Korea's HT-500 non-independent unit |
|||||
