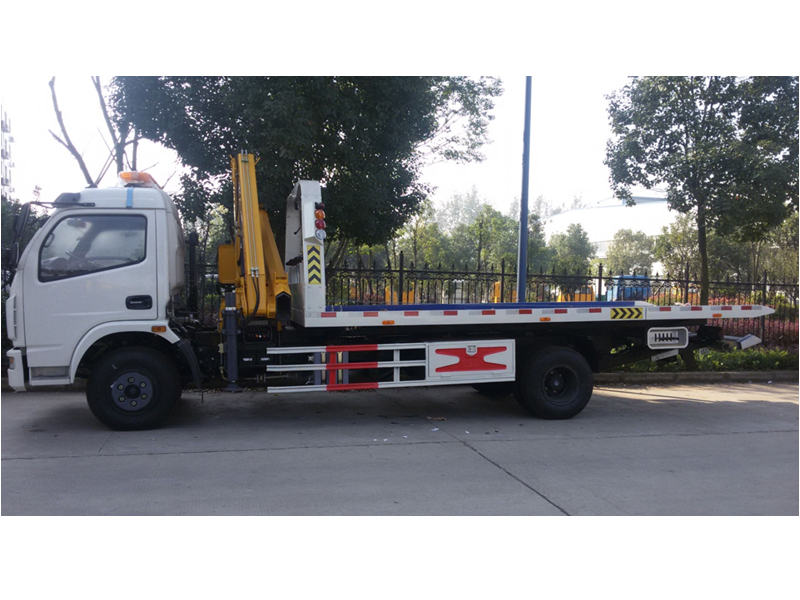

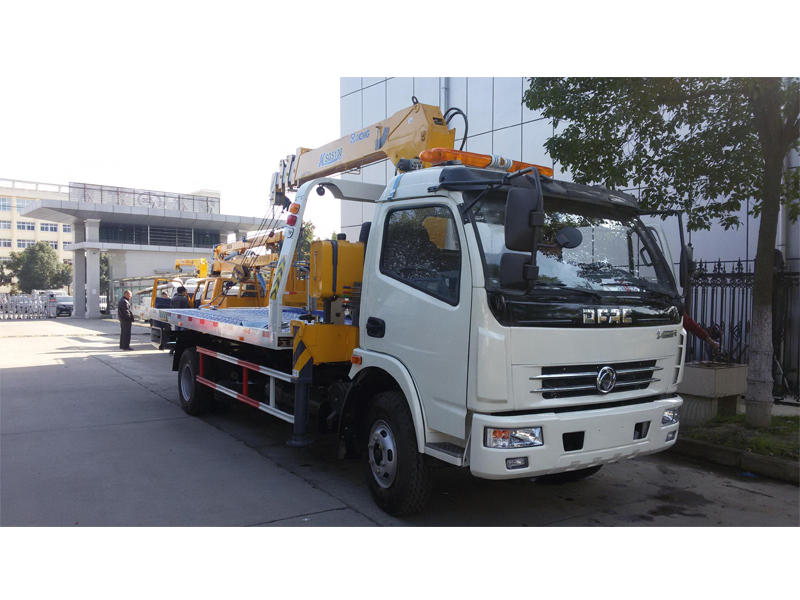

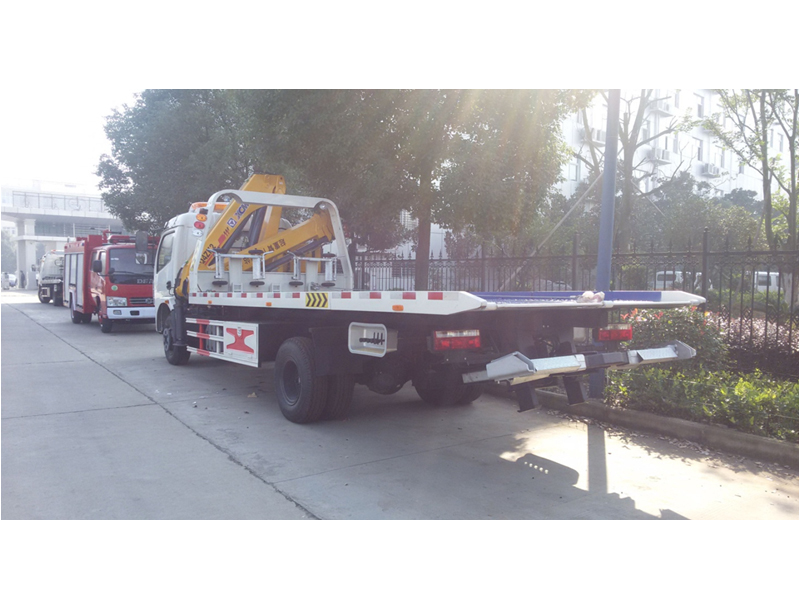

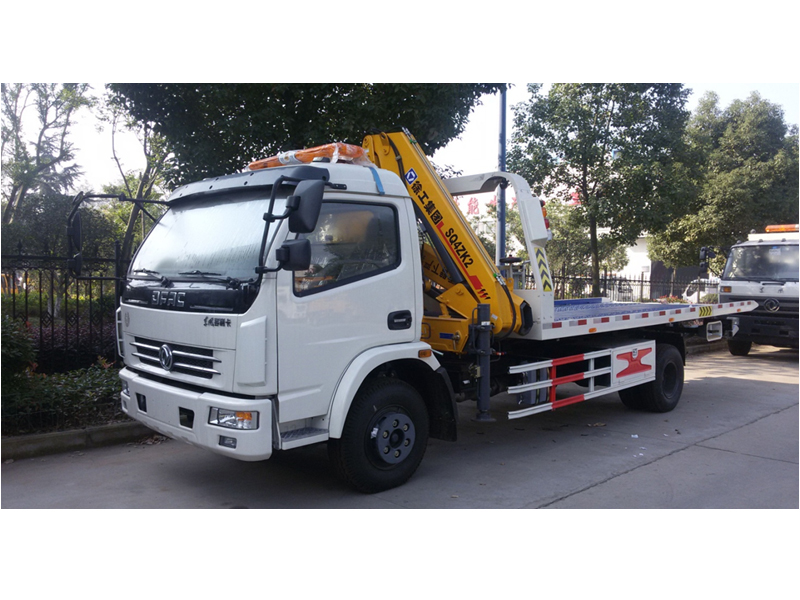

Dongfeng Duolika Flatbed Car Towing Wrecker Truck with XCMG Crane
- Chassis Dongfeng Duolika chassis
- Engine Chaoyang CY4102
- Certificate ISO, CCC, GCC
- capacity 3-6T
We're here to help:Easy ways to get the answers you need.
We're here to help:Easy ways to get the answers you need.
Feature
parameter
| Item | unit | parameter | |||
| Vehicle model | Wrecker Truck | ||||
| Chassis model | DFA1090SJ11D5 | ||||
| Overall dimensions | mm | 7840×2200×2520 | |||
| Mass in working order | kg | Appro×7600 | |||
| Body internal dimensions | mm | / | |||
| Wheel base | 4400 | ||||
| F/R track base | 1835/1640 | ||||
| Approach/departure angle | ° | 25.5/11 | |||
| Exhaust/kw | ml/kw | 3856 /88 | |||
| Max speed | km/h | 95 | |||
| Tire specification | 8.25-16 | Engine type | CY4102-E3C | ||
| Traction system | 4×2 | transmission | 6-speed with over drive | ||
| Number of axles | 2 | Electric system | 24v | ||
| Operation control system | Electrically hydraulic control | Allowable passengers in cab | 2 | ||
| Flatbed parameter: | |||||
| Dimension | mm | 5530*2300 | |||
| Capacity | Kg | 3000 | |||
| operating stroke | mm | 2680 | |||
| Minimum Angle | ° | 8 | |||
| Crane (XCMG fold crane) | 3.2T | Max. Lifting Capacity (Kg) | 3200 | ||
| Max.Lifting Moment(T·M) | 6.7 | ||||
| Recommended Power (kw) | 10 | ||||
| Max.Lifting range(m) | 5.2 | ||||
| Max.Lifting height(m) | 6.8 | ||||
| Max.Outrigger span (m) | 3.3 | ||||
| Max.Hydraulic system flow (L/min) | 25 | ||||
| Rated pressure of hydraulic system (MPa) | 20 | ||||
| Fule tank Capacity (L) | 60 | ||||
| Rotation angle (°) | 370 | ||||
| Crane weight(kg) | 1160 | ||||
| Installation space (mm) | 850 | ||||
