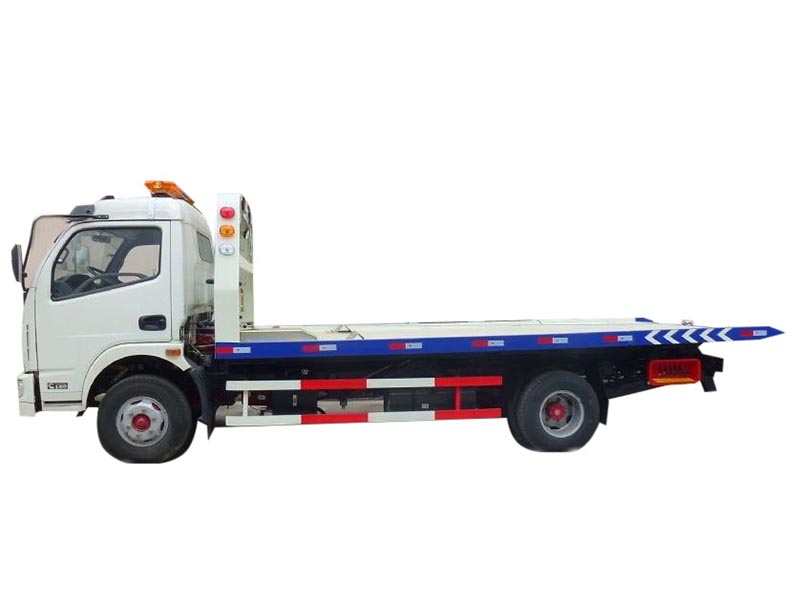

Dongfeng Captain DFA1063 Flatbed Car Towing Truck
- Chassis Dongfeng Captain chassis
- Engine Cummins
- Certificate ISO, CCC, GCC
- capacity 3-6T
We're here to help:Easy ways to get the answers you need.
We're here to help:Easy ways to get the answers you need.
Feature
parameter
|
VEHICLE MODLE |
JDF5071TQZ |
|
|
|
|
OVERALL DIMENSION(mm) |
GVW(Kg) |
7490 |
||
|
Flat bed dimension(mm) |
5000x2100 |
Rated payload(Kg) |
|
|
|
approach/departure angle |
20/12 |
Curb weihgt(Kg) |
5495 |
|
|
Overhang(front /rear)(mm) |
1180/2440 |
Max speed(km/h) |
95 |
|
|
Chassis model |
|
|
||
|
Available engine |
Engine maker |
Engine displacement(cc) |
Power(Kw) |
|
|
CY4102-E3C |
Dongfeng Chaoyang Diesel Engine |
3856 |
91 |
|
|
Fuel type |
diesle |
Emission |
Euro 2\3 |
|
|
Number of axle |
2 |
Number of tire |
6 |
|
|
wheelbase |
3800 |
Tire size |
8.25-16,7.50-16,8.25R16,7.50R16 |
|
|
Front tread |
1835,1750 |
|||
|
Number of steel spring leaf(front/rear) |
11/9+7,8/10+7 |
Rear tread |
1640,1586 |
|
|
special function |
||||
|
performance |
Rated tow lifting weight(kg):1040 ; stretch travel range of tow arm（mm）:1180 maximum effective length of tow arm（mm）：1300 maximum traction speed(km/h)：40 |
|||
|
Specification of flat board |
Dimension of flat board(Length*width)(mm):5240*2100 Minimum gradient of flat board(°):10 work travel range of flat board(mm):2680 Maximum load weight of flat board(kg):3000 |
|||
|
The specification of the winch qty(piece)：1 rated towing weight(kg)：3000 the length of steel wire rope(m):21 the speed of winch rope(m/min):8 |
||||
