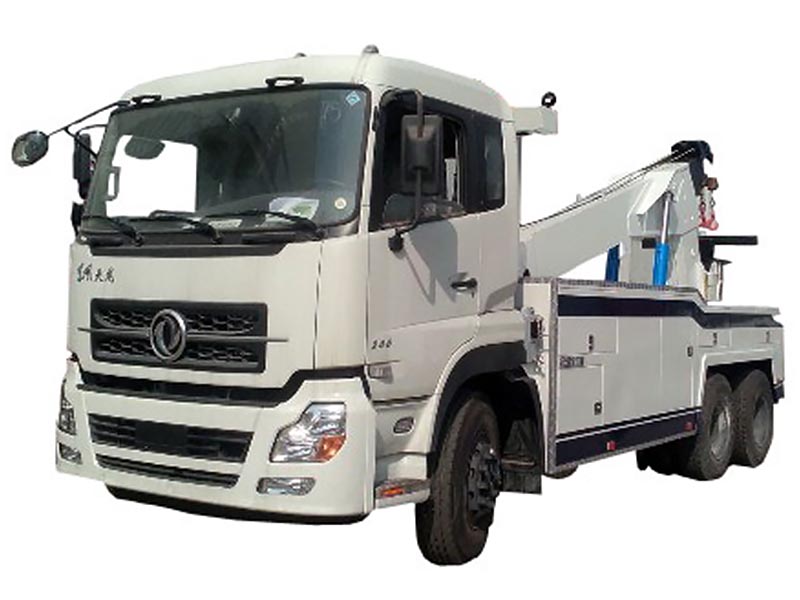

Dongfeng DFL1250 6x4 16T Wrecker Truck
- Chassis Dongfeng DFL1250 chassis
- Engine Cummins
- Certificate ISO, CCC
- capacity 16T
We're here to help:Easy ways to get the answers you need.
We're here to help:Easy ways to get the answers you need.
Feature
parameter
|
Truck |
Drive mode |
6×4 |
|
|
Chassis |
DFL1250 |
||
|
Engine |
Model |
Cummins C245 33 |
|
|
Type |
136/2500 |
||
|
Power/Displacement(Kw/ml) |
180KW/8300 |
||
|
Type of fuel |
Diesel |
||
|
Oil Consumption(km/L) |
22.4 |
||
|
Tyre |
Size |
11.00R20 |
|
|
Gear Box |
Mechanical 6 speed gear box |
||
|
Steering |
Power assist steering |
||
|
Air conditioner |
A/C |
||
|
Dimensions |
Overall dimension (mm) |
9600×2500×3150 |
|
|
Wheel base (mm) |
4350+1300 |
||
|
Front/Rear tread(mm) |
1986/1860 |
||
|
Performance |
Max. speed(Km/h) |
90 |
|
|
App./Dep. angel (°) |
20/15 |
||
|
Max. gradability (%) |
30 |
||
|
Min.turning diameter(m) |
18 |
||
|
Min.ground clearance(mm) |
240 |
||
|
Mass |
Payload (Kg) |
22000 |
|
|
Curb weight(Kg) |
19305 |
||
|
G.V.W (Kg) |
35000 |
||
|
Axle Loading Weight(Kg) |
7000/18000 |
||
|
Special Device |
Lifting Structure |
Max lifting capacity(kg)(Choosing) |
16000 |
|
|
Max lifting high(mm)(Choosing) |
9800 |
|
|
|
Lift-hoist telescope |
3000 |
|
|
|
Winch rating pulling capacity(kg) |
5000 *2 |
|
|
|
Length of steel(m) |
45 |
|
|
|
Hoisting Structure |
Max under-hoistuseful length(mm) |
2800 |
|
|
Rating under-hoisting capacity(kg) |
4990 |
|
|
|
Fully extended max under-hoisting |
3850 |
|
|
|
Rating under-pulling capacity(kg) |
25000 |
|
|
|
Other Configuration |
1. Lifting Capacity: 55000kg. Suspension (mm) : 0 and wheelbase (mm) : 2340239 4350 + 1350, 4350 + 1300 one-to-one correspondence; Double winding (20 t) with the 3.1 M long (arm), hydraulic leg. |
|
