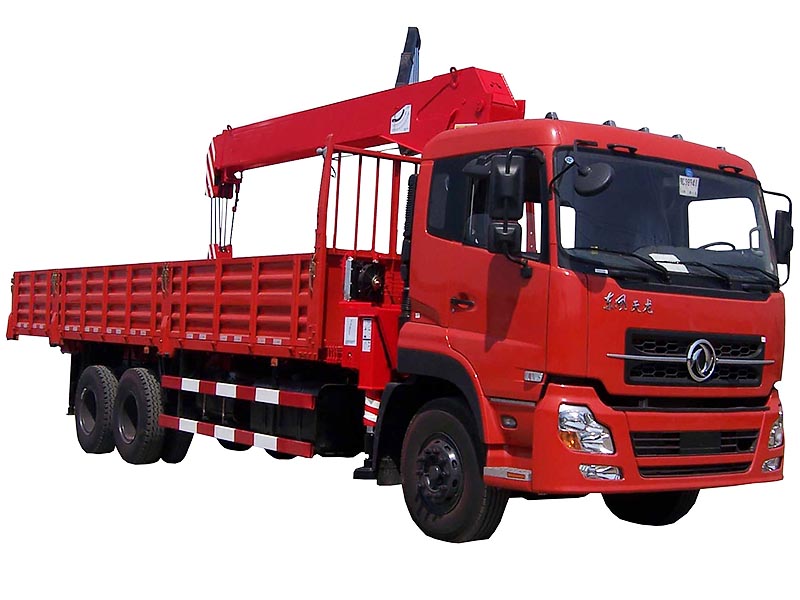

Dongfeng DFL1250 6x4 10T Truck Mounted With Crane
- Chassis Dongfeng chassis
- Engine Cummins, Yuchai
- Certificate ISO, CCC
- Crane XCMG brand
We're here to help:Easy ways to get the answers you need.
We're here to help:Easy ways to get the answers you need.
Feature
parameter
|
Truck |
Drive mode |
6×4 |
|
|
Chassis |
DFL1250A9 |
||
|
Engine |
Model |
Cummins C245 20 |
|
|
Type |
6-cylinder in line, turbocharging and inter cooling, mechanical injection pump, bulit-in EGR |
||
|
Max. power(Kw/rpm) |
180/2200 |
||
|
Max. torque(N.m/rpm) |
1025/1400 |
||
|
Bore/Stroke(mm) |
114×135 |
||
|
Displacement(ml) |
8300 |
||
|
Type of fuel |
Diesel |
||
|
Compression ratio |
(18±0.5):1 |
||
|
No. of valves |
2 |
||
|
Dimensions |
Overall dimension (mm) |
11980×2500×3750 |
|
|
Wheel base (mm) |
5350+1300 |
||
|
Front/Rear tread(mm) |
1986/1860 |
||
|
Mass |
Payload (Kg) |
9815 |
|
|
Curb weight(Kg) |
14990 |
||
|
G.V.W (Kg) |
25000 |
||
|
Crane |
Crane Weight (Kg) |
3500 |
|
|
Max. Lifting Capacity (Kg) |
10000 |
||
|
Max. Lifting Moment (T.M) |
25 |
||
|
Lifting Capacity/Working Radius (Kg/m) |
10000/2.5 |
||
|
5500/4.5 |
|||
|
2300/9.0 |
|||
|
1500/12.0 |
|||
|
Max. Working Radius (m) |
12 |
||
|
Max. Working Height (m) |
13.8 |
||
