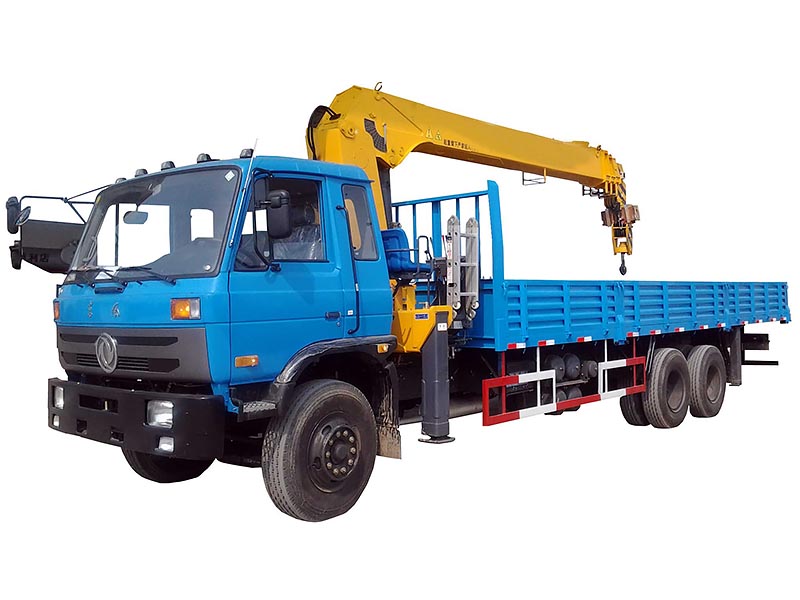

Dongfeng DFD1254GJ2 6x4 8T Truck Mounted With Crane
- Chassis Dongfeng chassis
- Engine Cummins, Yuchai
- Certificate ISO, CCC
- Crane XCMG brand
We're here to help:Easy ways to get the answers you need.
We're here to help:Easy ways to get the answers you need.
Feature
parameter
|
Drive mode |
6×4 |
|
|
Chassis model |
DFD1254GJ2 |
|
|
Engine |
Model |
YC6M290-33 |
|
Max. power(Kw) |
215kw/290hp |
|
|
Displacement(ml) |
9839 |
|
|
Type of fuel |
Diesel |
|
|
Emission Standard |
III |
|
|
Tyre |
Size |
10.00R20 |
|
Air conditioner |
A/C |
|
|
Dimensions |
Overall dimension (mm) |
8910,9200,9650×2500×3760 |
|
Wheel base (mm) |
3650+1350,3800+1350,4000+1350 |
|
|
Front/Rear tread(mm) |
1989/1860/1860 |
|
|
Appr./Depa. angel (°) |
30/28,30/27,30/26 |
|
|
Min. ground cleanrance(mm) |
520mm |
|
|
Mass |
Payload(Kg) |
12990 |
|
Curb weight(Kg) |
11815 |
|
|
G.V.W(Kg) |
25000 |
|
|
Crane Weight (Kg) |
1500 |
|
|
Max. Lifting Capacity (Kg) |
8000-10000 |
|
|
Max. Lifting Moment (T.M) |
20 (Folding) |
|
|
Lifting Capacity/Working Radius (Kg/m) |
2375/7.815 |
|
|
3270/6.050 |
||
|
4285/4.670 |
||
|
6750/3.000 |
||
|
Max. Working Radius (m) |
7.815 |
|
|
Max. Working Height (m) |
10 |
|
