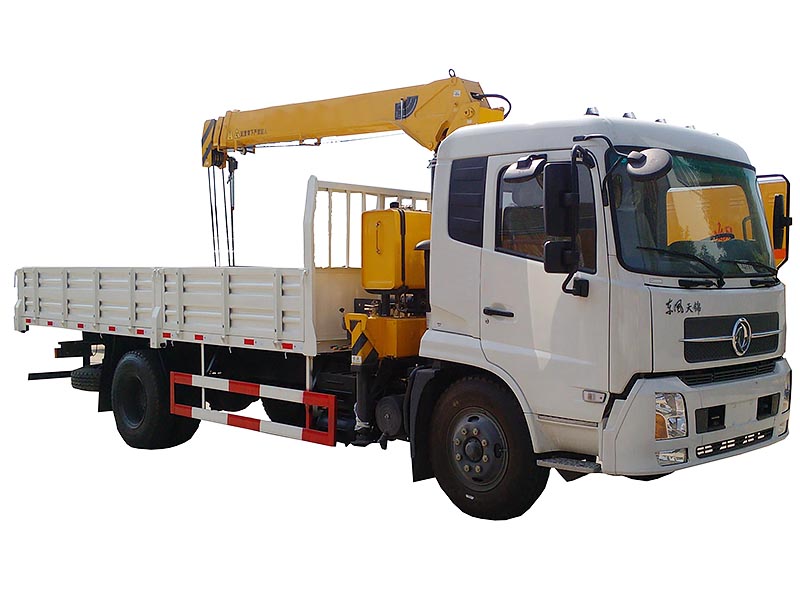

Dongfeng DFA1063 Truck Mounted With Crane Truck
- Chassis Dongfeng chassis
- Engine Cummins, Yuchai
- Certificate ISO, CCC, GCC
- Crane XCMG brand
We're here to help:Easy ways to get the answers you need.
We're here to help:Easy ways to get the answers you need.
Feature
parameter
|
Truck |
Engine |
Model |
Cummins ISDe160-30 |
|
Type |
6-cylinder in line,electronic control system,Enhanced High Pressure Common Rail,Particulate filter |
||
|
Max. power(Kw/rpm) |
118/2700 |
||
|
Max.torque (N.m/rpm) |
500/2700 |
||
|
Max. torque speed (rpm.min) |
1300 |
||
|
Bore /Stroke(mm) |
98*126 |
||
|
Displacement(ml) |
6700 |
||
|
Type of fuel |
diesel |
||
|
Max.horsepower |
160 |
||
|
Compression ratio |
17.5 |
||
|
Tire |
Size |
9.00R20 |
|
|
Frame Cross-section Height(mm) |
280 |
||
|
Axle |
Front axle(kg) |
3900 |
|
|
Rear axle(kg) |
8000 |
||
|
Dimensions |
Overall dimension (mm) |
8945*2430*3400 |
|
|
Inner dimension(mm) |
6730(5830)*2300*550 |
||
|
Wheel base (mm) |
5200 |
||
|
Mass |
Curb weight(kg) |
5150 |
|
|
Rated weight(kg) |
10500 |
||
|
G.V.W (kg) |
15650 |
||
|
System |
Brake system |
Air |
|
|
Steering system |
Power assisted steering |
||
|
Storage battery |
24V |
||
|
Aircondition |
Optional |
||
|
Cab |
Size |
one and half row |
|
|
Crane |
|
Max. Lifting Capacity (Kg) |
2000-3200 |
|
Max.Lifting Moment(T·M) |
6.7 |
||
|
Recommended Power (kw) |
10 |
||
|
Max.Lifting range(m) |
5.2 |
||
|
Max.Lifting height(m) |
6.8 |
||
|
Max.Outrigger span (m) |
3.3 |
||
|
Max.Hydraulic system flow (L/min) |
25 |
||
|
Rated pressure of hydraulic system (MPa) |
20 |
||
|
Fule tank Capacity (L) |
60 |
||
|
Rotation angle (°) |
370 |
||
|
Crane weight(kg) |
1160 |
||
|
Installation space (mm) |
850 |
||
