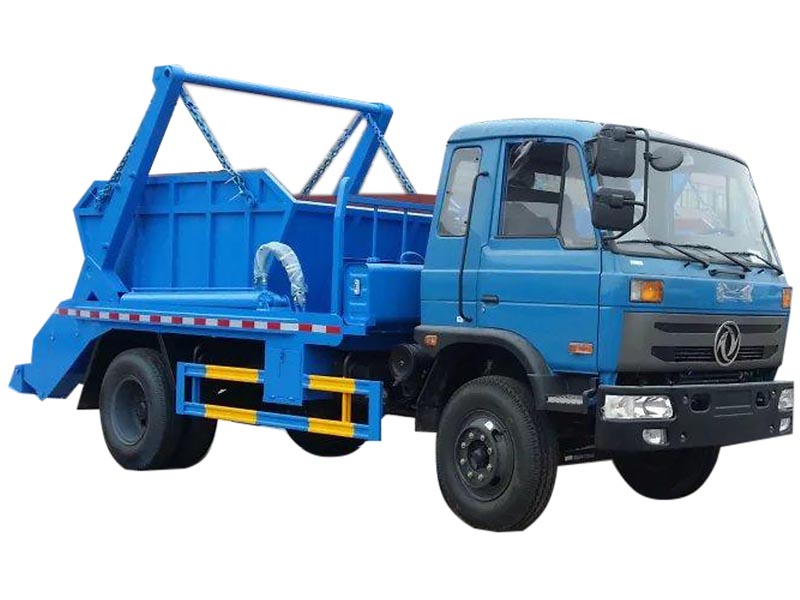

Dongfeng 4x2 EQ1121 3-8 m³ Swing Arm Garbage Truck
- Chassis Dongfeng EQ1121 chassis
- Engine Cummins
- Certificate ISO, CCC
- Tanker capacity 3-8m³/3000-8000L
We're here to help:Easy ways to get the answers you need.
We're here to help:Easy ways to get the answers you need.
Feature
parameter
|
Truck |
Chassis model |
EQ1121GKJ |
|
Engine |
Cummins 170-30 |
|
|
Max. power (KW/rpm) |
125/2500 |
|
|
Max. torque (N.m/rpm) |
700/1200-1700 |
|
|
Type OF Fuel |
Diesel |
|
|
Outer dimension (mm) |
7350×2480×3350 |
|
|
Wheel base (mm) |
3950 |
|
|
Front/Rear tread (mm) |
1900/1800 |
|
|
App./Depar. Angle (°) |
30/28 |
|
|
Payload (kg) |
4900 |
|
|
Curb weight (kg) |
7355 |
|
|
G.V.W (kg) |
12450 |
|
|
Max Speed (Km/h) |
85 |
|
|
Tyre |
9.00-20 |
|
|
Specfication of Tank |
Container Capacity (m³) |
3-8 |
|
Filling Mouth Grand Clearance (mm) |
740 |
|
|
Lifting arm circumference radius (mm) : |
2400 |
|
|
Filling Circulation Time (s) |
20-25 |
|
|
Unloading bucket hoisting time (s) |
30 |
|
|
The hydraulic system working pressure (Mpa) |
16 |
|
|
Max.Discharge Strength (T) |
8 |
