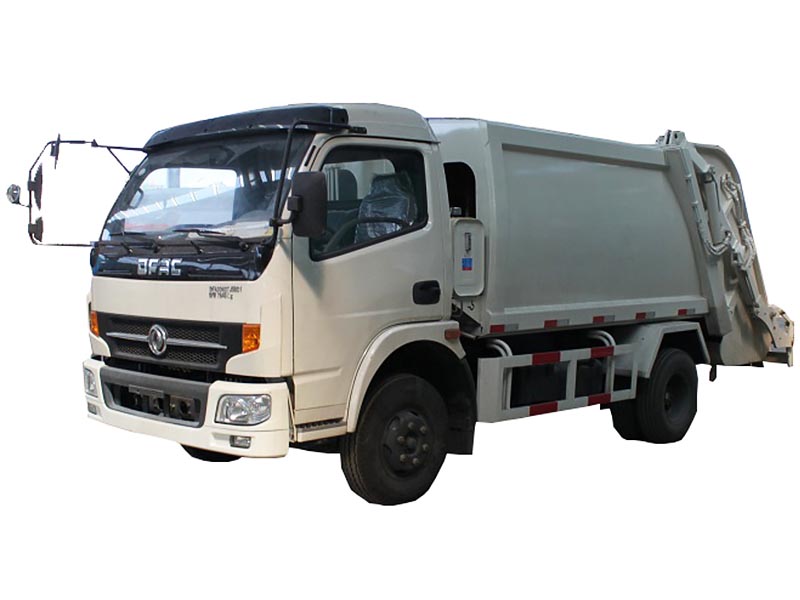

Dongfeng Captain 4-8 m³ Compression Garbage Truck
- Chassis Dongfeng Captain chassis
- Engine Cummins
- Certificate ISO, CCC, GCC
- Tanker capacity 4-8m³/4000-8000L
We're here to help:Easy ways to get the answers you need.
We're here to help:Easy ways to get the answers you need.
Feature
parameter
|
Dimension(mm) |
|||
|
Outer |
6970*2220*2410 |
||
|
Wheel Base(mm) |
3800 |
||
|
Tread(F/R)(mm) |
1750/1586 |
||
|
F/R suspension |
1210/1960 |
||
|
Weight(kg) |
|||
|
Curb Weight(kg) |
3645 |
||
|
Payload(Kg) |
6000 |
||
|
G.V.W(kg) |
8125 |
||
|
Engine |
|||
|
Engine type |
EQB125-30 |
||
|
Emission standard |
Euro III |
||
|
Power |
92/2800 |
||
|
Torque |
410/1500 |
||
|
Bore*Stroke(mm) |
102*120 |
||
|
Displacement(ml) |
3922 |
||
|
Performance |
|||
|
Max Speed(kg/h) |
105 |
||
|
Max Gradeability |
30 |
||
|
Min Turning Radius(m) |
7.5 |
||
|
Power steering |
Equipped |
||
|
Brake |
air |
||
|
Battery |
24V |
||
|
Tire |
7.5R16 |
||
|
Cabin |
|||
|
Heater |
Equipped |
||
|
Air conditioner |
Option |
||
|
Air conditioner |
Optional |
||
|
Centrul Lock and Power Window |
Optional |
||
|
Specifiaciton of tanker |
|||
|
Container Capacity(m³) |
4-8 |
||
|
Thickness of tanker(mm) |
5 |
||
|
Filling Mouth Grand Clearance（mm） |
860 |
||
|
Filling Circulation Time（s） |
30 |
||
|
Precompressor Load Time（s） |
18-22 |
||
|
Precompressor Lifting Time（s） |
15 |
||
|
Max. Compression Strength（T） |
16 |
||
|
Max.Discharge Strength（T） |
18 |
||
|
Fill in loading Time(s) |
12 |
||
|
Discharge Time(s) |
40 |
||
|
operation mode |
full-automatic or semi-automatic |
||
|
component parts |
Compartments, drain tank, scraper, pushing shovel, hydraulic system, hang barrel device |
||
