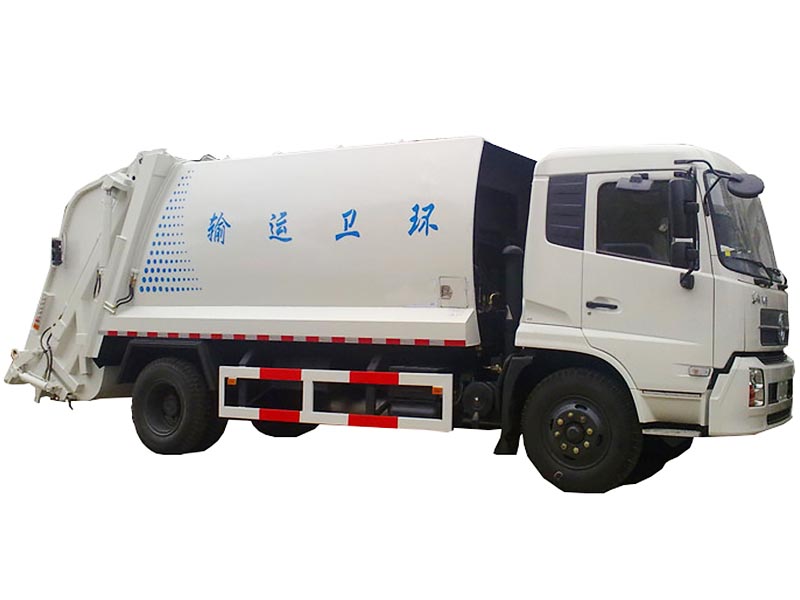

Dongfeng 4x2 DFL1120 8-12 m³ Compression Garbage Truck
- Chassis Dongfeng DFL1120 chassis
- Engine Cummins
- Certificate ISO, CCC
- Tanker capacity 8-12m³/8000-12000L
We're here to help:Easy ways to get the answers you need.
We're here to help:Easy ways to get the answers you need.
Feature
parameter
|
Truck |
Chassis model |
DFL1120B1 |
|
Engine |
Cummins 170 30 |
|
|
Max. power(KW/rpm) |
125/2500 |
|
|
Max. torque(N.m/rpm) |
700/1200-1700 |
|
|
Type OF Fuel |
Diesel |
|
|
Outer dimension (mm) |
7700×2400×2900 |
|
|
Wheel base (mm) |
3800 |
|
|
Front/Rear tread(mm) |
1880/1860 |
|
|
App./Depar. Angle(°) |
20/14 |
|
|
Payload （kg） |
4990 |
|
|
Curb weight（kg） |
7305 |
|
|
G.V.W （kg） |
12490 |
|
|
Specfication of Tank |
Container Capacity(m³) |
8-12 |
|
Filling Mouth Grand Clearance（mm） |
860 |
|
|
Filling Circulation Time（s） |
30 |
|
|
Precompressor Load Time（s） |
18-22 |
|
|
Precompressor Lifting Time（s） |
15 |
|
|
Max. Compression Strength（T） |
16 |
|
|
Max.Discharge Strength（T） |
18 |
|
|
Fill in loading Time(s) |
12 |
|
|
Discharge Time(s) |
40 |
