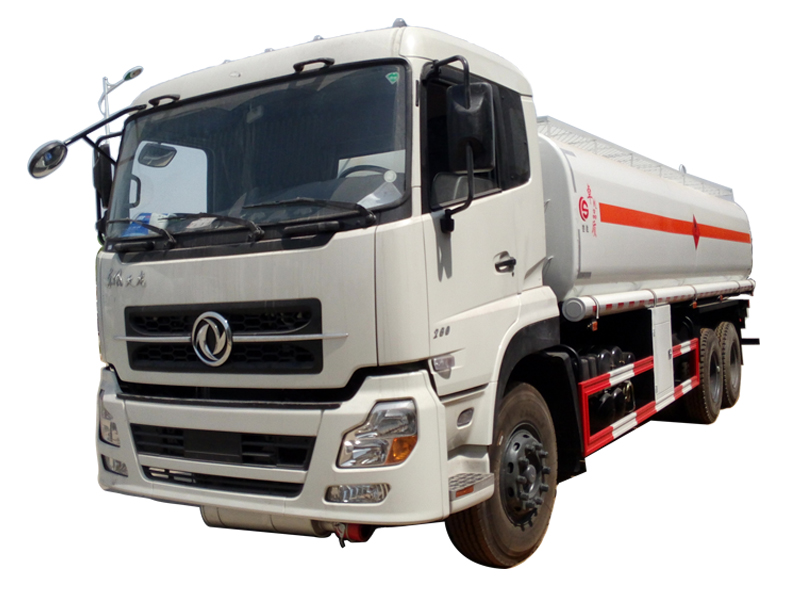

Dongfeng DFL1250 20000L Fuel Tanker Truck
- Chassis Dongfeng chassis
- Engine Cummins engine
- Fuel tanker capacity 20m³/20000L
We're here to help:Easy ways to get the answers you need.
We're here to help:Easy ways to get the answers you need.
Feature
parameter
| Truck | Drive Mode | 6×4 | |
| Chassis | DFL1250A9 | ||
| Engine | Model | Cummins ISDe 245 30 | |
| Type | 6-cylinder in line, turbocharging, inter cooling, electrical control common-rail engine | ||
| Max. power(Kw/rpm) | 180/2500 | ||
| Max. torque(N.m/rpm) | 925/1200-1700 | ||
| Bore /Stroke(mm) | 107×124 | ||
| Displacement(ml) | 6700 | ||
| Type of fuel | Diesel | ||
| Compression ratio | 17.3:1 | ||
| Gearbox | Model | 8JS118T-B | |
| Max.torque(N.m/rpm) | 1180 | ||
| Dimensions | Overall dimension (mm) | 10960×2500×3200 | |
| Wheel base (mm) | 5350+1300 | ||
| Front/Rear tread(mm) | 1986/1860 | ||
| App./Dep. Angle(°) | 20/13 | ||
| Mass | Payload (kg) | 13725 | |
| Curb weight(kg) | 11045 | ||
| G.V.W (kg) | 24900 | ||
| Special functions | Overall dimension of tank (Length*Macro axis*Minor axis) (mm) | 8500×2250×1420 | |
| Effective Volume(m³) | 20 | ||
| Tansport Medium | all kinds of oils, chemical liquids | ||
| Material of tank | carbon steel/stainless | ||
| It has the functions of oil absorption, oil pumping and etc. The tax control computor tanker, 15m oil reel, self-zeroing flow meter and oil gun are optional. | |||
