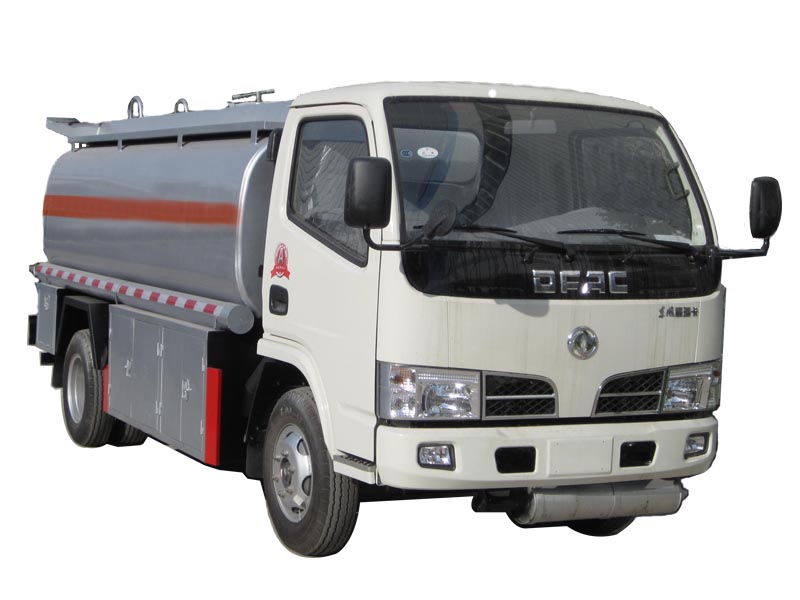

Dongfeng DFA1063 Fuel Tanker Truck
- Chassis Dongfeng chassis
- Engine chaochai
- Fuel tanker capacity 5m³/5000L
We're here to help:Easy ways to get the answers you need.
We're here to help:Easy ways to get the answers you need.
Feature
parameter
| Truck | Drive Mode | 4×2 | |
| Chassis | DFA1063 | ||
| Engine | Model | Chaochai CY4102-C3E | |
| Type | 4-cylinder in line, water cooling, turbocharging, inter cooling,vertical engine | ||
| Max. power(Kw/rpm) | 75/3000 | ||
| Displacement(ml) | 3856 | ||
| Type of fuel | Diesel | ||
| Dimensions | Overall dimension (mm) | 6890×2220×2510 | |
| Wheel base (mm) | 3800 | ||
| Front/Rear tread(mm) | 1586/1530 | ||
| App./Dep. Angle(°) | 22/13 | ||
| Mass | Curb weight(kg) | 2850 | |
| G.V.W (kg) | 6475 | ||
| Special functions | Overall dimension of tank (Length*Macro axis*Minor axis) (mm) | 5000×1900×1050 | |
| Effective volume(m³) | 5 | ||
| Tansport medium | all kinds of oils, chemical liquids | ||
| Material of tank | carbon steel/stainless | ||
| It has the functions of oil absorption, oil pumping and etc. The tax control computor tanker, 15m oil reel, self-zeroing flow meter and oil gun are optional. | |||
