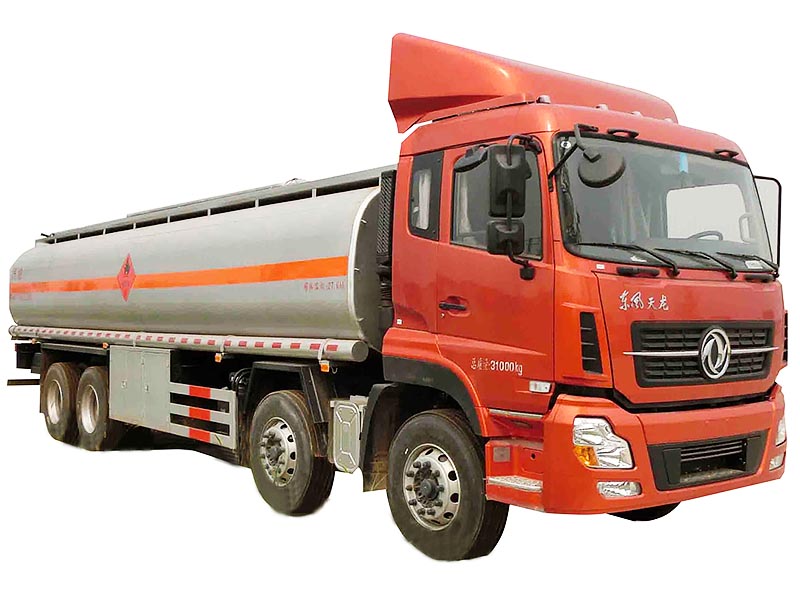

Dongfeng 8x4 DFL1311 28000L Fuel Tanker Truck
- Chassis Dongfeng 8x4 chassis
- Engine Cummins engine
- Fuel tanker capacity 26-28m³/26000-28000L
We're here to help:Easy ways to get the answers you need.
We're here to help:Easy ways to get the answers you need.
Feature
parameter
|
Truck |
Drive Mode |
8×4 |
|
|
Chassis |
DFL1311A3 |
||
|
Engine |
Model |
Cummins ISLe290 30 |
|
|
Type |
6-cylinder in line, turbocharging, air cooling, inter cooling, electrical control common-rail engine |
||
|
Max. power(Kw/rpm) |
213/2100 |
||
|
Max. torque(N.m/rpm) |
105/1000-1900 |
||
|
Bore /Stroke(mm) |
114×144.5 |
||
|
Displacement(ml) |
8900 |
||
|
Type of fuel |
Diesel |
||
|
Compression ratio |
16.6:1 |
||
|
Gearbox |
Model |
9JS119T-B |
|
|
Max.torque(N.m/rpm) |
1190 |
||
|
Dimensions |
Overall dimension (mm) |
11980×2500×3200 |
|
|
Wheel base (mm) |
1950+4250+1300 |
||
|
Front/Rear tread(mm) |
1940/1860 |
||
|
App./Dep. Angle(°) |
20/13 |
||
|
Mass |
Payload (kg) |
17965 |
|
|
Curb weight(kg) |
12505 |
||
|
G.V.W (kg) |
30600 |
||
|
Special functions |
Overall dimension of tank (Length*Macro axis*Minor axis) (mm) |
9200×2250×1450 |
|
|
Effective Volume(m³) |
28 |
||
|
Tansport Medium |
all kinds of oils, chemical liquids |
||
|
Material of tank |
carbon steel/stainless |
||
|
It has the functions of oil absorption, oil pumping and etc. The tax control computor tanker, 15m oil reel, self-zeroing flow meter and oil gun are optional. |
|||
