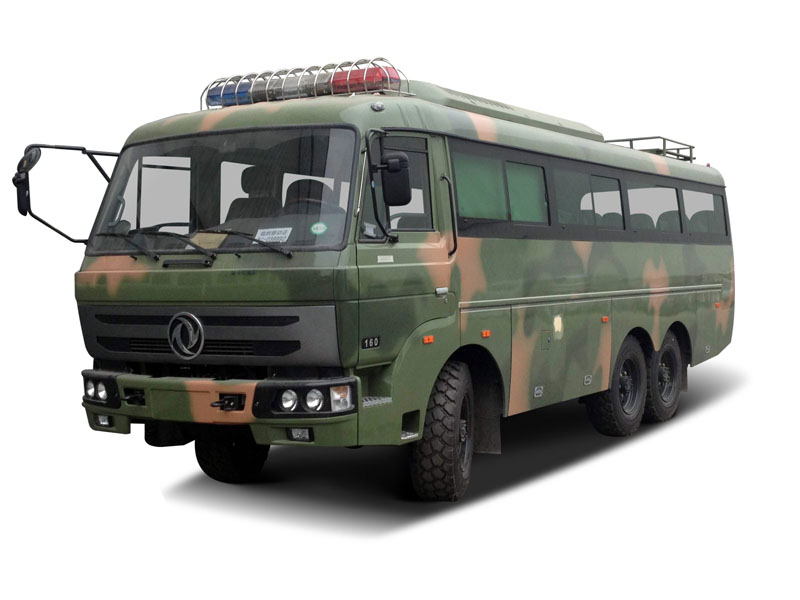

Dongfeng EQ6840 6x6 Bus
- Chassis Dongfeng 6x6 chassis
- Seats number 24-30
We're here to help:Easy ways to get the answers you need.
We're here to help:Easy ways to get the answers you need.
Feature
parameter
|
VEHICLE |
length（mm） |
8380 |
ENGINE |
Mode |
EQ6BT5.9 |
||
|
Width mm） |
2350 |
||||||
|
height（mm） |
2930,3130（with A.C） |
manufacturer |
Dongfeng Cummins |
||||
|
Wheel base（mm） |
3190+1100 |
type |
Six cylinder |
||||
|
front/rear overhang（mm） |
1290/2790 |
Rated output（kw） |
114 |
||||
|
approaching/departure angle |
35/23 |
Max.torque （N.m） |
490 |
||||
|
displacement(ml) |
5880 |
||||||
|
G.V.W（kg） |
9350 |
bore×stroke（mm） |
102×120 |
||||
|
Seat capacity |
30(including driver) |
Emission standard |
Euro-Ⅱ |
||||
|
Max. speed（km/h） |
85 |
|
|
||||
|
Volume of luggage compartment（m3） |
0.8 m3 |
|
|
||||
|
Item |
Standard allocation |
optional |
|||||
|
CHASSIS |
gearbox |
C17CA1-00030-TQ |
|
||||
|
By Dongfeng Motor Transmission Co,.Ltd |
|
||||||
|
clutch |
φ350 single plate、dried、diaphragm spring, clutch booster |
|
|||||
|
Oil tank |
Copper oil tank (270L) |
|
|||||
|
tires |
11R18 |
|
|||||
|
batteries |
12V 150A.h×2 |
|
|||||
|
others |
Clutch booster; air drier; air cut brake |
ABS(5000RMB)；automatic slack adjuster(1500RMB) |
|||||
|
BODY |
doors |
manual rotating passenger door; two doors for driver and assistant driver respectively |
|
||||
|
Side windows |
Push-pull glass window |
|
|||||
|
Rear view system |
Electric side mirror |
|
|||||
|
Video system |
mp3 Radio-cassette Player with SD card connector |
LCD MP4 video system |
|||||
|
lights |
Combined headlight |
High mount stop lamp |
|||||
|
Rain wiper |
Bi-direction electric rain wiper |
|
|||||
|
seats |
General seat (two-point safety belt for passengers and three-point safety belt for drivers) |
General handrail/mid-range rotating handrail |
|||||
|
paint |
Domestic paint (three layers) |
Metallic paint |
|||||
|
others |
Dong Feng 0ff-the-road bus chassis, 6x6drive, front settled engine, left hand drive，mechanical manual gearbox,, reer abat vent curtain, domestic paint, electric fan in driving compartment, electronic clock, air horn, two safety hummers, bamboo veneer floor+vinyl floor |
|
|||||
