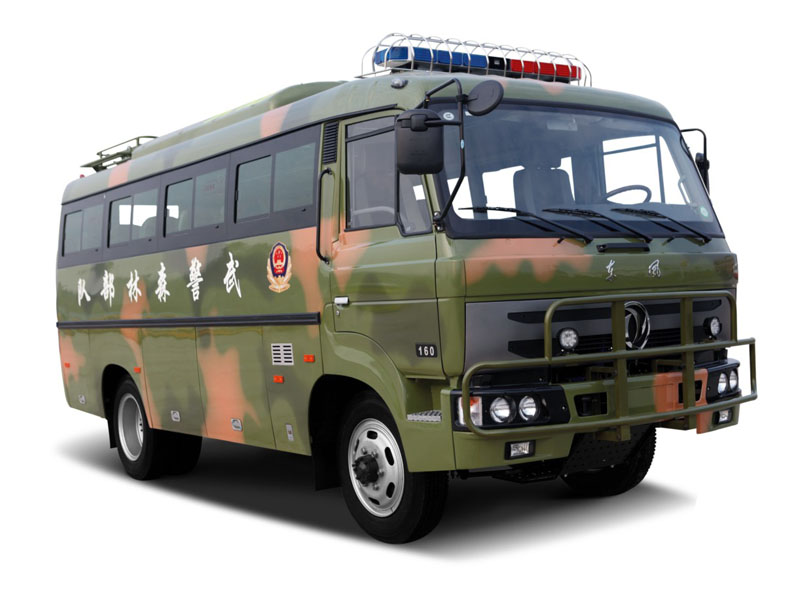

Dongfeng EQ6670 4X4 Bus
- Chassis Dongfeng 6x6 chassis
- Seats number 3-19
We're here to help:Easy ways to get the answers you need.
.jpg)
We're here to help:Easy ways to get the answers you need.
Feature
parameter
|
Dimensions |
||
|
Overall Length |
6700 mm |
|
|
Overall Width |
2320 mm |
|
|
Overall Height |
2750 mm |
|
|
Overall Height with AC |
2960 mm |
|
|
Wheelbase |
3650 mm |
|
|
Front Overhang |
1290 mm |
|
|
Rear Overhang |
1760 mm |
|
|
Interior Height |
1730 mm |
|
|
First Step Height |
570 mm |
|
|
Gross Vehicle Weight |
6500 kg |
|
|
Curb Weight |
5000 kg |
|
|
Max Speed |
80 km/h |
|
|
Seats Capacity |
3-19 |
|
|
Luggage Compartment Volume |
1.05 m3 |
|
|
Engine |
||
|
Engine Model |
Cummnis ISDe140-30 |
|
|
Engine Type |
in-line, 4cylinders, 4-stroke,water-cooled |
|
|
Air Intake Type |
turbo-charger, inter-cooled |
|
|
Position/Fuel |
Front / Diesel |
|
|
Max Output |
103kw |
|
|
Max Torque |
450 Nm/rpm |
|
|
Displacement |
4500 ml |
|
|
Emission Standard |
Euro III |
|
|
Chassis |
||
|
Chassis Model |
EQ6640KST |
|
|
Gear Box |
Manual , 5 speed |
|
|
Clutch |
Single plate, dry friction, diaphragm spring |
|
|
Front Axle |
Dongfeng Axle 3T |
|
|
Rear Axles |
Dongfeng Axle 3.5T |
|
|
Suspension |
Multi-leaf spring with telescopic shock absorber |
|
|
Steering |
Mechanical, recirculating ball, power steering |
|
|
Brake |
Dual circuit full air brake, central drum brake |
|
|
|
Spring actuated parking brake on rear wheels |
|
|
Fuel Tank |
150L +60L |
|
|
Tyres |
Dongfeng 11R18 |
|
|
Battery/Alternator |
6-QW-120DF/70A |
|
|
Others |
Copper Radiator; Clutch booster; Air dryer; |
|
|
|
Engine preheating device |
|
|
Optional: |
Automatic brake gap adjustment arm; |
|
|
|
Engine exhaust brake; ABS; Air Suspension; |
|
|
|
Automatic fire extinguishers within engine bin |
|
|
HVAC |
|
|
|
Optional |
Driver's fan |
|
|
|
Dongfeng Pannico top-mounted A/C (14.45KW) |
|
|
|
Water heating system; |
|
|
|
Independent fuel heater; |
|
|
radio & video |
|
|
|
Satndard |
Mp3 and radio player with USB Interfaces |
|
|
Optional |
Mp4/Mp5 video system; |
|
|
|
15-inch/17-inch manual foldable color LCD |
|
