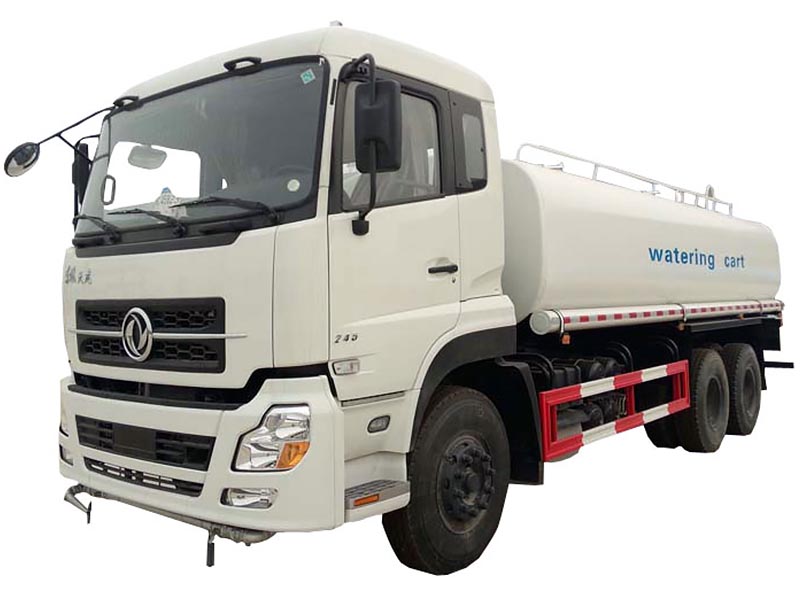

Dongfeng DFL1250 6x4 16-20 m³ Water Tanker Truck
- Chassis Dongfeng DFL1250 6x4 chassis
- Engine Cummins
- Certificate ISO, CCC
- Tanker capacity 16-20m³/16000-20000L
We're here to help:Easy ways to get the answers you need.
We're here to help:Easy ways to get the answers you need.
Feature
parameter
|
Truck |
Drive mode |
6×4 |
|
|
Chassis |
DFL1250A9 |
||
|
Engine |
Model |
Cummins ISDe 245 30 |
|
|
Type |
6-cylinder in line, turbocharging, air cooling, inter cooling, electrical control engine |
||
|
Max. power(Kw/rpm) |
180/2500 |
||
|
Max. torque(Kw/rpm) |
925/1200-1700 |
||
|
Bore /Stroke(mm) |
107×124 |
||
|
Displacement(ml) |
6700 |
||
|
Type of fuel |
Diesel |
||
|
Compression ratio |
17.3:1 |
||
|
Cab |
D530 |
One and a half single row |
|
|
Capacity |
3 persons |
||
|
Gearbox |
Type |
FAST 8JS118T-B |
|
|
Max. torque(N.m) |
1180 |
||
|
Clutch |
Φ395mm |
push-type diaphragm spring clutch |
|
|
Frame H×W× T(mm) |
300×90×[8+6] |
||
|
No. of Spring leaves |
8/9 |
||
|
Tyre |
Size |
11.00R20 |
|
|
Air conditioner |
A/C |
||
|
Dimensions |
Overall dimension (mm) |
10560×2500×3200 |
|
|
Wheel base (mm) |
4350＋1300 |
||
|
Front/Rear tread(mm) |
1986/1860 |
||
|
Performance |
Max. speed(Km/h) |
90 |
|
|
Mass |
Payload(Kg) |
13660 |
|
|
Curb weight(Kg) |
11045 |
||
|
G.V.W (Kg) |
24900 |
||
|
Specification |
Overall dimension of tank (Length*Macro axis*Minor axis) (mm) |
7000×2350×1500 |
|
|
Effective Volume(L) |
20000(two equal compartments) |
||
|
Material of tank |
stainless steel |
||
|
It is equipped with PTO, cardan shaft, steel mudguards, hose compartments on both side, 4 spiral hoses 2.5" dia., 4m length, with couplings for sunction water, hose 25m length for discharge. |
|||
