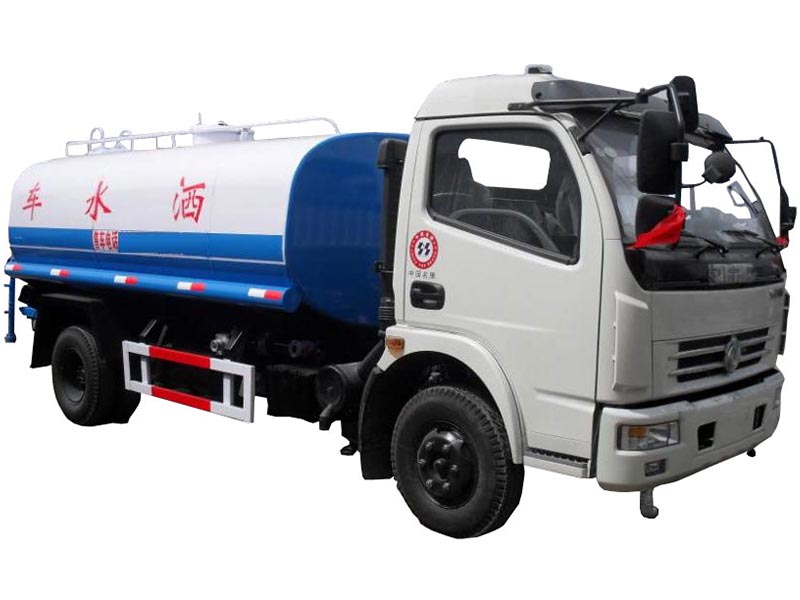

Dongfeng Captain DFA1063 3-8 m³ Water Tanker Truck
- Chassis Dongfeng Captain chassis
- Engine Cummins
- Certificate ISO, CCC, GCC
- Tanker capacity 3-8m³/3000-8000L
We're here to help:Easy ways to get the answers you need.
We're here to help:Easy ways to get the answers you need.
Feature
parameter
|
Dimension(mm) |
|
|
Outer |
6970*2220*2410 |
|
Wheel Base(mm) |
3800 |
|
Tread(F/R)(mm) |
1750/1586 |
|
F/R suspension |
1210/1960 |
|
Weight(kg) |
|
|
Curb Weight(kg) |
3645 |
|
Payload(Kg) |
6000 |
|
G.V.W(kg) |
8125 |
|
Engine |
|
|
Engine type |
EQB125-30 |
|
Emission standard |
Euro III |
|
Power |
92/2800 |
|
Torque |
410/1500 |
|
Bore*Stroke(mm) |
102*120 |
|
Displacement(ml) |
3922 |
|
Performance |
|
|
Max Speed(kg/h) |
105 |
|
Max Gradeability |
30 |
|
Min Turning Radius(m) |
7.5 |
|
Power steering |
Equipped |
|
Brake |
air |
|
Battery |
24V |
|
Tire |
7.5R16 |
|
Cabin |
|
|
Heater |
Equipped |
|
Air conditioner |
Option |
|
Air conditioner |
Optional |
|
Centrul Lock and Power Window |
Optional |
|
Specification of tanker |
|
|
Overall dimension of tank (Length*Macro axis*Minor axis) (mm) |
6000×1950×700 |
|
Effective volume(m³) |
5 |
|
Tansport medium |
Water |
|
Material of tank |
carbon steel/stainless |
