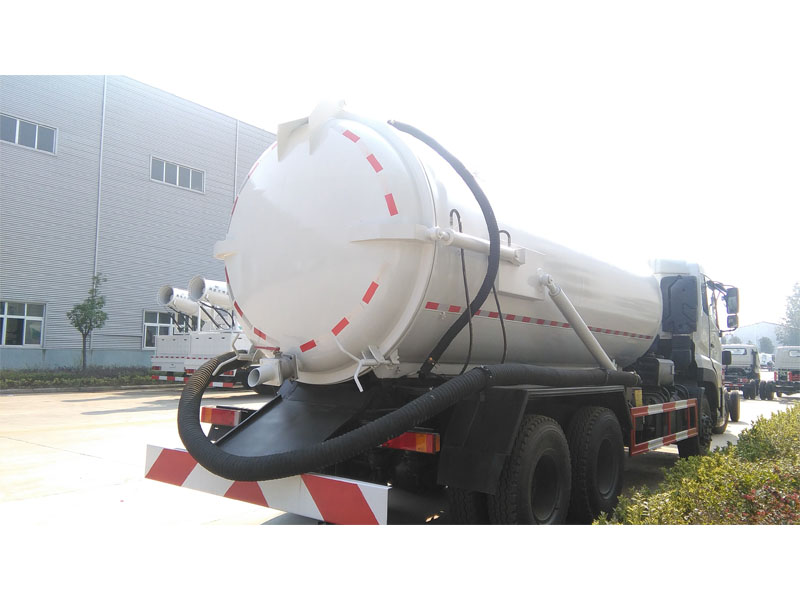

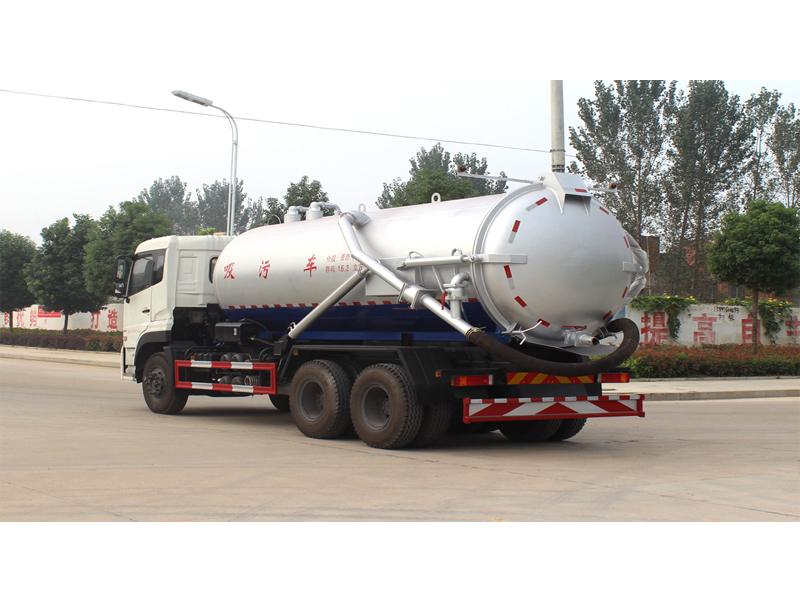

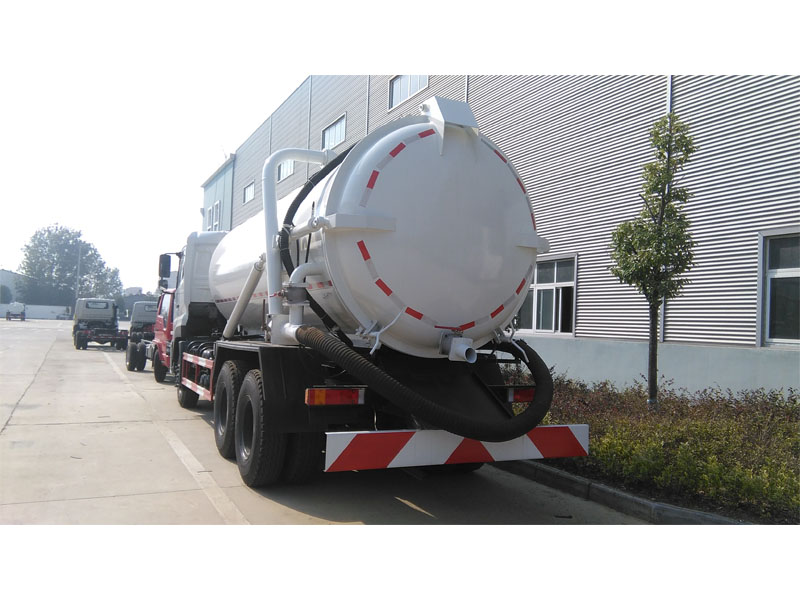

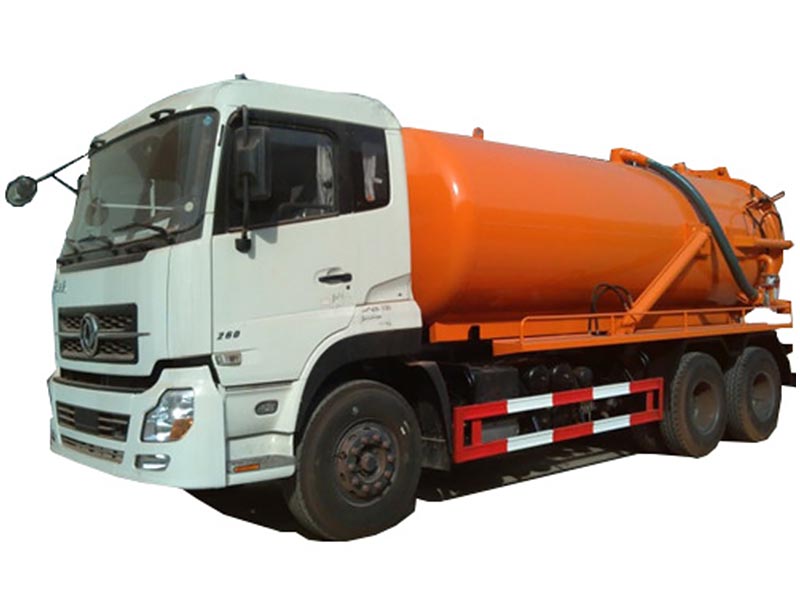

Dongfeng DFL1250 6x4 16 m³ Suction Sewage Truck

Truck

Drive mode

6×4

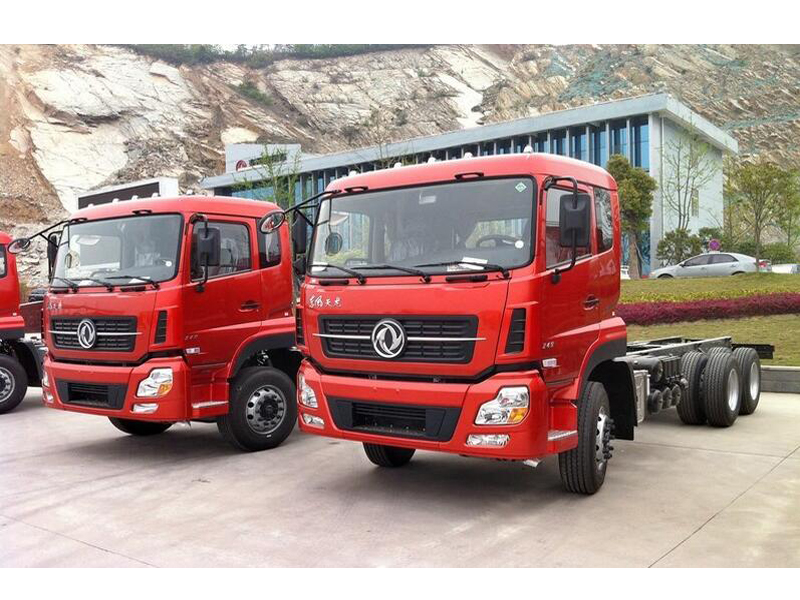

Chassis

DFL1250A8

Engine

Model

Cummins C245 33

Type

136/2500

Power/Displacement(Kw/ml)

180KW/8300

Type of fuel

Diesel

Oil Consumption(km/L)

22.4

Tyre

Size

10.00-20,10.00R20

Gear Box

Mechanical 6 speed gear box

Steering

Power assist steering

Air conditioner

A/C

Dimensions

Overall dimension (mm)

9600×2500×3480

Wheel base (mm)

4350+1300

Front/Rear tread(mm)

1986/1860

Performance

Max. speed(Km/h)

90

App./Dep. angel (°)

20/15

Max. gradability (%)

30

Min.turning diameter(m)

18

Min.ground clearance(mm)

240

Mass

Payload (Kg)

22000

Curb weight(Kg)

12805

G.V.W (Kg)

35000

Axle Loading Weight(Kg)

7000/18000

Special functions

Specifications

Tank Volume (m³)

16

Tank overall dimension (mm)

4500×1500

Vacuum Pump Model

XD-44

Suitable turning speed(r/m)

500-600

Suitable revolution(min/rpm)

1400

Max.Vacuum Degree(kPa)

93-96

Effictive Suction Length(m)

≥7-20

Fulling time(min)

≤3

Tank lifting time(s)

≤10

Alarm method

Electronic alarm

Body Configuration

1. Transport medium: liquid waste, density: 800 kg/m3, the effective volume of tank 16.4 square meters. Shape of tank size (diameter straight long x) (mm) : 5500 x 5500. When wheelbase for 4350 + 1300 after 2490, when wheelbase for 4350 + 1350 after hanging 2440. Along with the chassis options cab. Side against the defensive use of Q235 material welding on the girder. Protective section size (mm) after 50 x 100, defensive high from the ground is 510 mm. The biggest suction 6 meters or more full time 5 min or less dung cans

2. Special parts: Including PTO, Transmission axle, Special vacuum tank, sewage pumps, high pressure molding dung pipe network system composition, and equipped with window depending on the dung and washing device.

3.Vacuum pump: Adopt the domestic advanced technology special suction pump, Large Range suction power.
