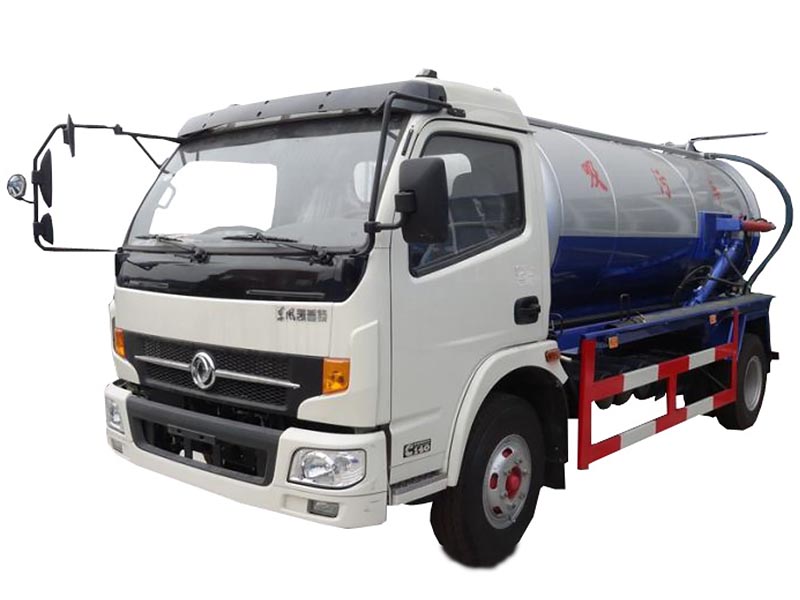

Dongfeng Captain DFA1063 3-8 m³ Suction Sewage Truck
- Chassis Dongfeng Captain chassis
- Engine Cummins
- Certificate ISO, CCC, GCC
- Tanker capacity 3-8m³/3000-8000L
We're here to help:Easy ways to get the answers you need.
We're here to help:Easy ways to get the answers you need.
Feature
parameter
|
Dimension(mm) |
|||||
|
Outer |
6970*2220*2410 |
||||
|
Wheel Base(mm) |
3800 |
||||
|
Tread(F/R)(mm) |
1750/1586 |
||||
|
F/R suspension |
1210/1960 |
||||
|
Weight(kg) |
|||||
|
Curb Weight(kg) |
3645 |
||||
|
Payload(Kg) |
6000 |
||||
|
G.V.W(kg) |
8125 |
||||
|
Engine |
|||||
|
Engine type |
EQB125-30 |
||||
|
Emission standard |
Euro III |
||||
|
Power |
92/2800 |
||||
|
Torque |
410/1500 |
||||
|
Bore*Stroke(mm) |
102*120 |
||||
|
Displacement(ml) |
3922 |
||||
|
Performance |
|||||
|
Max Speed(kg/h) |
105 |
||||
|
Max Gradeability |
30 |
||||
|
Min Turning Radius(m) |
7.5 |
||||
|
Power steering |
Equipped |
||||
|
Brake |
air |
||||
|
Battery |
24V |
||||
|
Tire |
7.5R16 |
||||
|
Cabin |
|||||
|
Heater |
Equipped |
||||
|
Air conditioner |
Option |
||||
|
Air conditioner |
Optional |
||||
|
Centrul Lock and Power Window |
Optional |
||||
|
Special functions |
Specifications |
Tank volume (m³) |
3-8 |
||
|
Model of vacuum pump |
XD-30 |
||||
|
Suitable turning speed(r/m) |
500-600 |
||||
|
Suitable revolution(min/rpm) |
1400 |
||||
|
Max.vacuum degree(kPa) |
5 |
||||
|
Effictive suction length(m) |
≥7-20 |
||||
|
Time of pumping(min) |
≤3 |
||||
|
Advantages |
1. Enough sewage volume degree. |
||||
