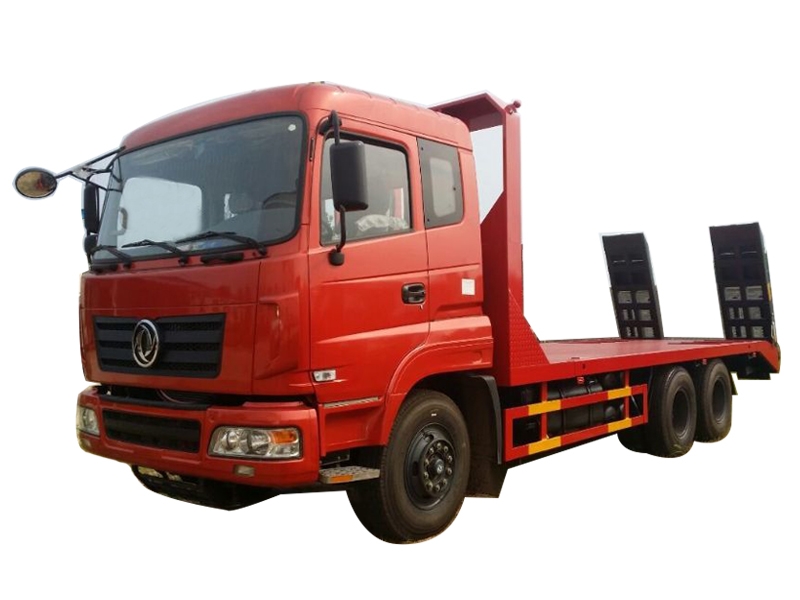

Dongfeng 6x4 DFL1250 Flatbed Transport Truck
- Chassis Dongfeng DFL1250 chassis
- Engine Cummins
- Certificate ISO, CCC
- Capacity 20-30T
We're here to help:Easy ways to get the answers you need.
We're here to help:Easy ways to get the answers you need.
Feature
parameter
| Drive mode | 6×4 | |
| Engine | Model | Cummins C245 33 |
| Type | 6-cylinder in line, turbocharging and inter cooling, mechanical injection bump, built-in EGR | |
| Max. power(Kw/rpm) | 180/2200 | |
| Max. torque(N.m/rpm) | 1025/1400 | |
| Cylinder bore ×Stroke(mm) | 114×135 | |
| Displacement(ml) | 8300 | |
| Type of fuel | Diesel | |
| Compression ratio | (18±0.5):1 | |
| Cab | D310-S1 | single sleeper |
| Capacity | 3 persons | |
| Gearbox | Type | Fast 9JS119T-B |
| Max. torque(N.m) | 1190 | |
| Clutch | Φ430mm | push-type diaphragm spring clutch |
| Frame H×W× T(mm) | 300×90×(8+6) | |
| Axles | Front axle(Kg) | 7000 |
| Rear axle(Kg) | 10000×2 | |
| No. of spring leaves | 8/9 | |
| Tyre | Size | 11.00R20 |
| Air conditioner | A/C | |
| Dimensions | Overall dimension(mm) | 9560×2500×3200 |
| Flatbed dimension(mm) | 7200×2294 | |
| Wheel base(mm) | 4350+1300 | |
| Front/Rear tread(mm) | 1986, 1860/1860 | |
| App./Dep. angel (°) | 20/14 | |
| Min. ground clearance(mm) | 240 | |
| Performance | Max. speed(Km/h) | 90 |
| Mass | Payload(Kg) | 26,000 |
| Curb weight(Kg) | 10,495 | |
| G.V.W(Kg) | 36,495 |
