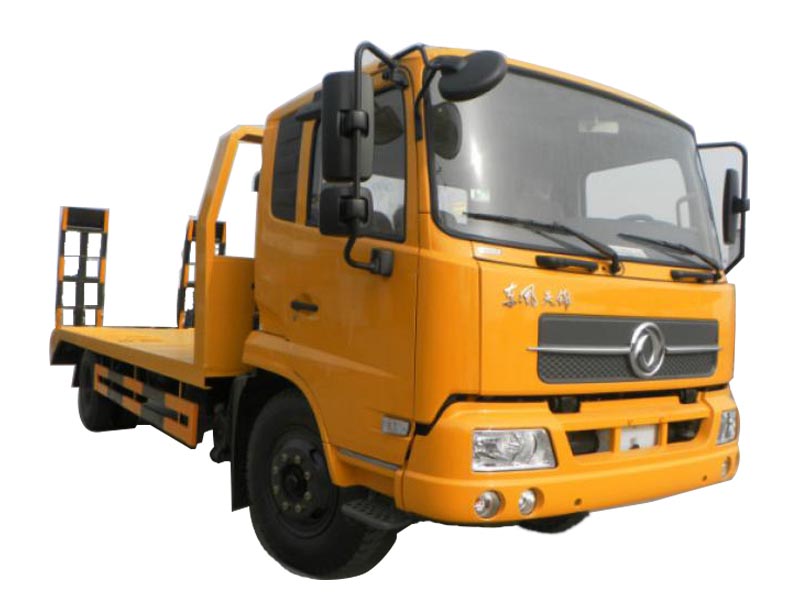

Dongfeng 4x2 DFL1120 Flatbed Transport Truck
- Chassis Dongfeng DFL1120 chassis
- Engine Cummins
- Certificate ISO, CCC
- Capacity 15-20T
We're here to help:Easy ways to get the answers you need.
.jpg)
We're here to help:Easy ways to get the answers you need.
Feature
parameter
| Drive mode | 4×2 | |
| Engine | Model | Cummins B170 33 |
| Type | 6-cylinder in line, turbocharging, inter cooling, mechanical injection pump, built-in EGR | |
| Max. power(Kw/rpm) | 125/2500 | |
| Max. torque(N.m/rpm) | 550/1500 | |
| Cylinder bore ×Stroke(mm) | 102×120 | |
| Displacement(ml) | 5900 | |
| Type of fuel | Diesel | |
| Compression ratio | (17.5±0.5）:1 | |
| Cab | D530 | one and a half rows |
| Capacity | 3 persons | |
| Gearbox | Type | DF6S750 |
| Max. torque(N.m) | 750 | |
| Clutch | Φ395mm | push-type diaphragm spring clutch |
| Frame H×W× T(mm) | 250×80×(7+4) | |
| Axles | Front axle(Kg) | 4500 |
| Rear axle(Kg) | 9000 | |
| No. of spring leaves | 7/9+6 | |
| Tyre | Size | 9.00-20 |
| Air conditioner | A/C | |
| Dimensions | Overall dimension(mm) | 8600×2500×2830 |
| Inner dimension(mm) | 6600×2294 | |
| Wheel base(mm) | 5000 | |
| Front/Rear tread(mm) | 1880/1800 | |
| App./Dep. angel (°) | 20/11 | |
| Performance | Max. speed(Km/h) | 90 |
| Max. gradeability(%) | 30 | |
| Min. turning diameter(m) | 17 | |
| Mass | Payload(Kg) | 18,700 |
| Curb weight(Kg) | 5,880 | |
| G.V.W(Kg) | 24,580 | |
