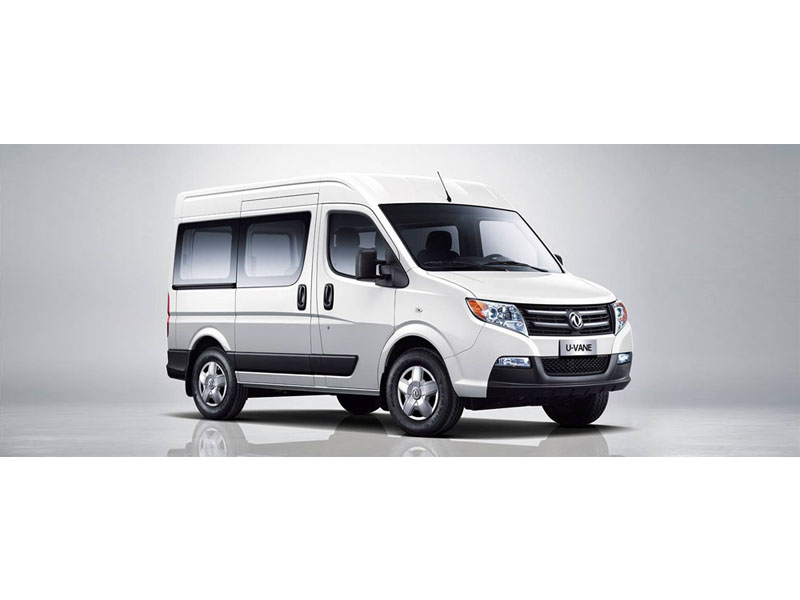

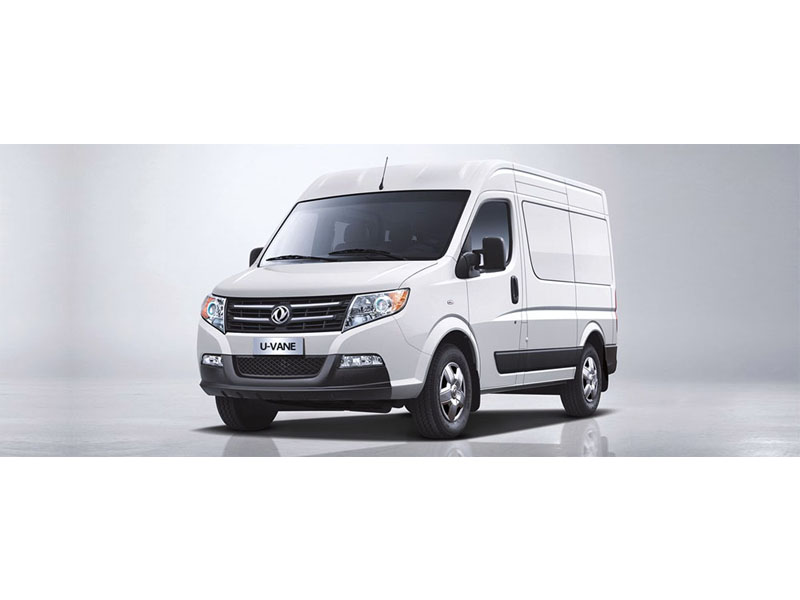

Dongfeng U-Vane A08 15-17 seats MPV Mini Bus
- Seats 10-17 seats
- Engine NISSAN engine
We're here to help:Easy ways to get the answers you need.
We're here to help:Easy ways to get the answers you need.
Feature
parameter
| Type | Short Wheel Base mid. Top | Mid. Wheel Base mid. Top | Mid. Wheel Base High Top | Long Wheel Base High Top | ||
| Model | K12-001 | K11-001 | K13-001 | K14-001 | ||
| No. of Seat (include driver) | 12 | 15 | 15 | 17 | ||
| Length(mm) | 5000 | 5750 | 5750 | 6350 | ||
| Width(mm) | 2036 | 2036 | 2036 | 2036 | ||
| Height(mm) | 2375 | 2375 | 2590 | 2590 | ||
| Inner Length(mm) | 2560 | 3310 | 3310 | 3910 | ||
| Inner Width(mm) | 1770 | 1770 | 1770 | 1770 | ||
| Inner Height(mm) | 1710 | 1710 | 1925 | 1925 | ||
| Wheel Base(mm) | 3100 | 3610 | 3610 | 4210 | ||
| Wheel Tread (mm) | 1734/1728 | 1734/1728 | 1734/1728 | 1734/1728 | ||
| F/R Overhang(mm) | 915/985 | 915/1225 | 915/1225 | 915/1225 | ||
| Min. turning diameter(m) | 13.5 | 13.5 | 13.5 | 15.5 | ||
| Curb Weight(kg) | 2290 | 2465 | 2550 | 2620 | ||
| GVW(kg) | 3300 | 3650 | 3750 | 4000 | ||
| Max. Speed(km/h) | 150 | 148 | 143 | 142 | ||
| Tire | 215/75 R16C | 215/75 R16C | 215/75 R16C | 215/75 R16C | ||
| Engine | ZD30/ZD25 | ZD30/ZD25 | ZD30/ZD25 | ZD30H14-3D/3N | ||
| Max. Power(kW/rpm) | 100/3600 | |||||
| Max. Torque(Nm/rpm) | 280/1800-3000 | |||||
| Displacement(L) | 2.953 | |||||
| Transmission ratio | 1st-6th | 3.875, ; 2.13, ; 1.324, ; 0.977, ; 0.939, ; 0.814 | ||||
| Final | 1st～4th：4.5；5th～6th and reveres：3.706 | |||||
| Rev. | 4.413 | |||||
| Type | Short Wheel Base mid. Top | Mid. Wheel Base mid. Top | Mid. Wheel Base High Top | Long Wheel Base High Top | ||
| Interior | CD Player | O | ;O | O | O | |
| DVD Player | O | ;O | O | O | ||
| Seat Headrest | S | S | S | S | ||
| Seat adjustable | S | S | S | S | ||
| Time display | S | S | S | S | ||
| Safety | ABS+EBD | O | ;O | O | O | |
| Driver Air Bag | O | ;O | O | O | ||
| Co. Driver Air Bag | O | ;O | O | - | ||
| Safety Belt all Seats | S | S | S | S | ||
| Side Impact Beam | S | S | S | S | ||
| Equipment | Radio controlled central lock | S | S | S | S | |
| Immobilizer | S | S | S | S | ||
| ;Navigation | O | O | O | O | ||
| Fuel consumption display | S | S | S | S | ||
| Power window | S | S | ; ; ; | ; ; ; ; | ||
| Electro rear view mirror | S | S | S | S | ||
| Reverse Sensor ; | S | S | S | S | ||
| Outer Tem. Display | S | S | S | S | ||
| Head light angle adjustment | S | S | S | S | ||
| S: Standard, O: Option, - : Not equipped | ||||||
