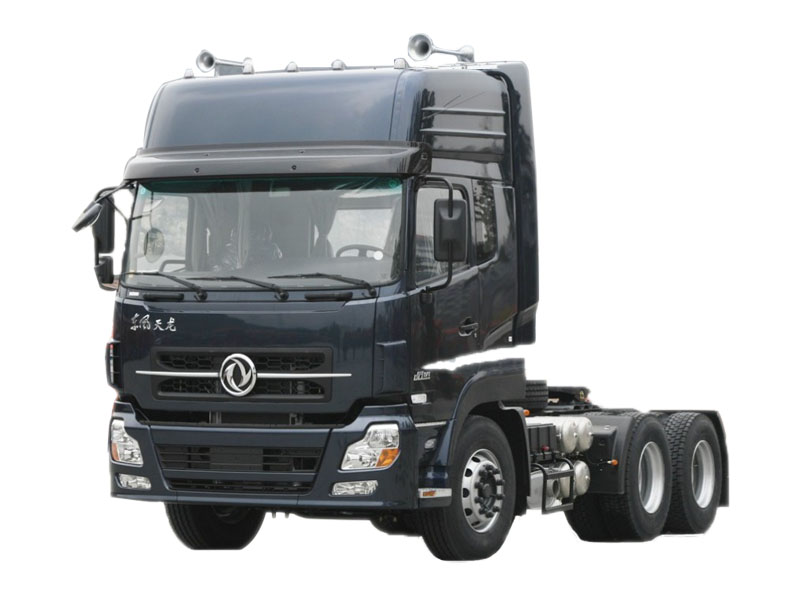

Dongfeng DFL4251A 6x4 Heavy Duty Tractor Truck
- Chassis Dongfeng chassis
- Engine Cummins engine
- Gearbox FAST gearbox
- Loading capacity 50-80T
We're here to help:Easy ways to get the answers you need.
We're here to help:Easy ways to get the answers you need.
Feature
parameter
| Drive mode | 6×4 | |
| Engine | Model | Cummins L375 20 |
| Max. power(Kw/rpm) | 275/2200 | |
| Max. torque(N.m/rpm) | 1400/1300-1500 | |
| Cylinder bore ×Stroke(mm) | 114×145 | |
| Displacement(ml) | 8900 | |
| Type of fuel | Diesel | |
| Compression ratio | 16.6:1 | |
| No. of valves | 4 | |
| Cab | D310-H1 | height ceiling, double berth |
| Capacity | 3 persons | |
| Gearbox | Type | Fast 12JS180T |
| Max. torque(N.m) | 1800 | |
| Gear ratio | 15.53 12.08 9.39 7.33 5.73 4.46 3.48 2.71 2.10 1.64 1.28 1.00 | |
| Clutch | Φ430mm | pull-type diaphragm spring clutch |
| Frame H×W× T(mm) | 300×90×(8+5) | |
| Frame width 940 (front ), Frame width 810 ( rear ) | ||
| No. of spring leaves | 3/10 | |
| Tyre | Size | 12.00R20 |
| Air conditioner | A/C | |
| Dimensions | Overall dimension (mm) | 7060×2500×3950 |
| Wheel base (mm) | 3400+1350 | |
| Front/Rear tread(mm) | 2027/1820 | |
| App./Dep. angel (°) | 18/32 | |
| Min. ground clearance(mm) | 240 | |
| Performance | Max. speed(Km/h) | 98 |
| Max. gradeability(%) | 35 | |
| Min. turning diameter(m) | 16 | |
| Fuel consumption(L/100Km) | 38 | |
| Mass | Curb weight(Kg) | 9950 |
| G.V.W (Kg) | 25000 | |
| Trailer G.V.W(Kg) | 40000 | |
