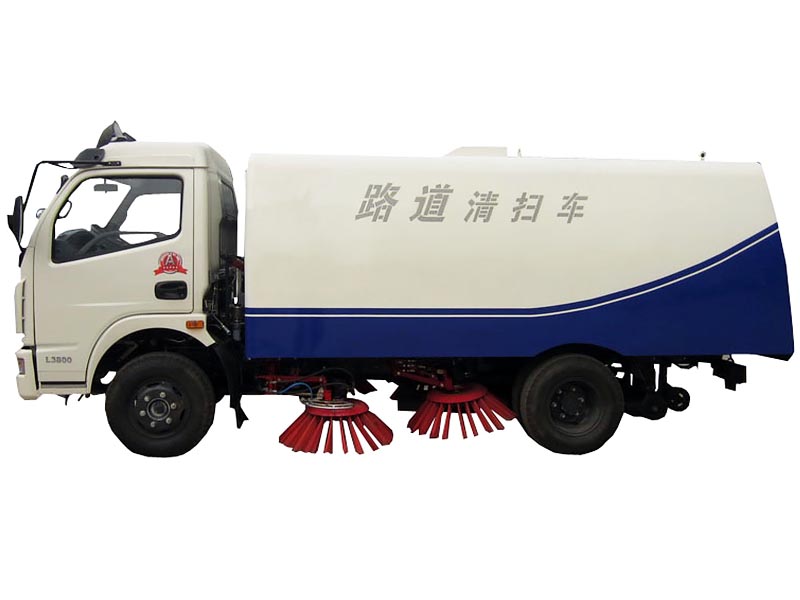

Dongfeng DFA1063 3-5 m³ Road Sweeper Truck
- Chassis Dongfeng DFA1063 chassis
- Engine CHAOCHAI
- Certificate ISO, CCC
- Tanker capacity 3-5m³/3000-5000L
We're here to help:Easy ways to get the answers you need.
We're here to help:Easy ways to get the answers you need.
Feature
parameter
|
Truck |
Drive mode |
4×2 |
|
|
Chassis |
DFA1063 |
||
|
Engine |
Model |
CY4102QBZL |
|
|
Type |
4-cylinder in line, turbocharging and inter cooling, water cooling |
||
|
Max. power(Kw/rpm) |
88/2800 |
||
|
Displacement(ml) |
3856 |
||
|
Type of fuel |
Diesel |
||
|
Dimmensions |
Overall dimension (mm) |
6695×2300×2500 |
|
|
Wheel base (mm) |
3800 |
||
|
Front/Rear tread(mm) |
1385/1640 |
||
|
Mass |
Payload (Kg) |
2200 |
|
|
Curb weight(Kg) |
5095 |
||
|
G.V.W (Kg) |
7490 |
||
|
Tyre |
Size |
8.25-16 |
|
|
Performance |
Speed(Kw/h) |
95 |
|
|
Special function |
Sweeping width(mm) |
3200 |
|
|
Sweeping capacity(㎡/h) |
9600-80000 |
||
|
Sweeping efficiency(%) |
≥90 |
||
|
Max. sweeping speed(Km/h) |
3-20 |
||
|
Sweeping Speed Cleaning Speed(Km/h) |
15-25 |
||
|
Max. absorbing diameter(mm) |
Ø220 |
||
|
Min. ground clearance of the suction Mouth (mm) |
860 |
||
|
Angle of discharge(°) |
60 |
||
|
Sweeping Brush Drive and Control |
Hydraulic |
||
|
Refuse container volume(m³) |
4.5 |
||
|
Water tank volume(m³) |
1 |
||
|
Sub-engine |
EQ 4BT3.9 （Dongfeng） |
||
