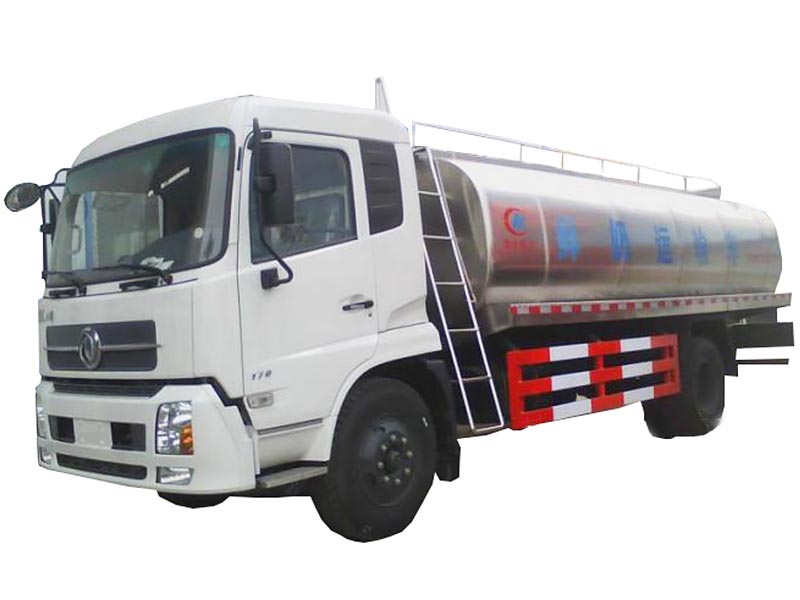

Dongfeng DFL1120 10-15 m³ Milk Tanker Truck
- Chassis Dongfeng DFL1120 chassis
- Engine Cummins
- Certificate ISO, CCC
- Tanker capacity 10-15m³/10000-15000L
We're here to help:Easy ways to get the answers you need.
We're here to help:Easy ways to get the answers you need.
Feature
parameter
|
Truck |
Drive mode |
4×2 |
|
|
Chassis |
DFL1120B |
||
|
Engine |
Model |
Cummins 170 30 |
|
|
Type |
136/2500 |
||
|
Power/Displacement(Kw/ml) |
4500 |
||
|
Type of fuel |
Diesel |
||
|
Tyre |
Size |
9.00-20 |
|
|
Air conditioner |
A/C |
||
|
Dimensions |
Overall dimension (mm) |
8600×2500×2830 |
|
|
Wheel base (mm) |
4700 |
||
|
Front/Rear tread(mm) |
1880/1860 |
||
|
Performance |
Max. speed(Km/h) |
90 |
|
|
App./Dep. angel (°) |
20/11 |
||
|
Max. gradability (%) |
30 |
||
|
Min.turning diameter(m) |
19 |
||
|
Min.ground clearance(mm) |
240 |
||
|
Mass |
Payload (Kg) |
15000 |
|
|
Curb weight(Kg) |
5880 |
||
|
G.V.W (Kg) |
12005 |
||
|
|
Others |
Effective volume(m³) |
10-15 |
|
Transport medium: milk, density: 0.82 t/m3, the effective volume of tank: 15 cubic meters;Tank material: stainless steel.Shape of tank size (long/short/long axis axis) (mm) : 6200/2300/1050 (the actual size is 6000/2100/1000, external thermal insulation layer thickness of tank is 100 mm).Equipped with PIC cleaning device, three positions |
|||
