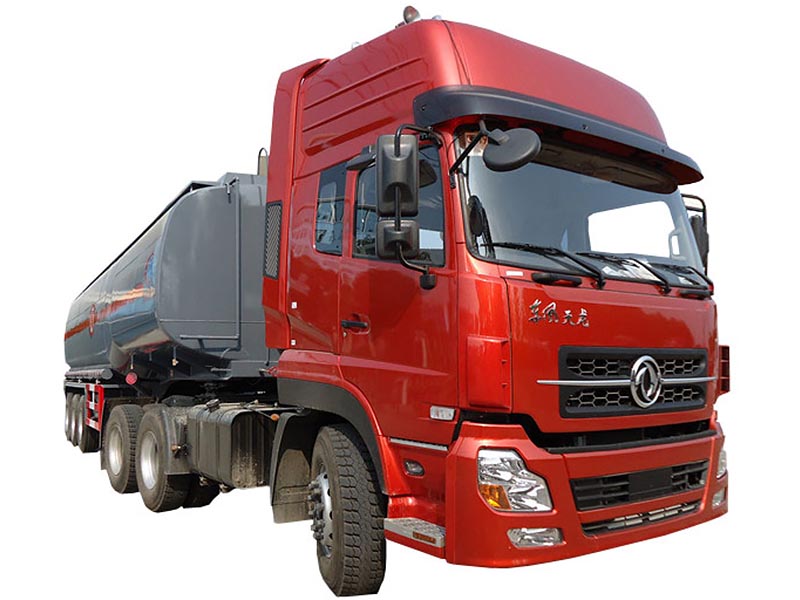

Dongfeng 3 Axle 40000L Fuel Tanker Trailer
- Axle BPW Germany axle
- Fuel tanker capacity 30-45m³/30000-45000L
We're here to help:Easy ways to get the answers you need.
We're here to help:Easy ways to get the answers you need.
Feature
parameter
|
Drive mode |
6×4 |
|
|
Engine |
Model |
Cummins L375 20 |
|
Max. power(Kw/rpm) |
275/2200 |
|
|
Max. torque(N.m/rpm) |
1400/1300-1500 |
|
|
Cylinder bore ×Stroke(mm) |
114×145 |
|
|
Displacement(ml) |
8900 |
|
|
Type of fuel |
Diesel |
|
|
Compression ratio |
16.6:1 |
|
|
No. of valves |
4 |
|
|
Cab |
D310-H1 |
height ceiling, double berth |
|
Capacity |
3 person |
|
|
Gearbox |
Type |
Fast 12JS180T |
|
Max. torque(N.m) |
1800 |
|
|
Gear ratio |
15.53 12.08 9.39 7.33 5.73 4.46 3.48 2.71 2.10 1.64 1.28 1.00 |
|
|
Clutch |
Φ430mm |
pull-type diaphragm spring clutch
|
|
Frame H×W× T(mm) |
300×90×(8+5) |
|
|
Frame width 940 (front ), Frame width 810 ( rear ) |
||
|
No. of spring leaves |
3/10 |
|
|
Tyre |
Size |
12.00R20 |
|
Air conditioner |
A/C |
|
|
Overall size (mm) |
12810(L)* 2500(W)*3900 (H) |
|
|
Wheel base (mm) |
7200+1310+1310 |
|
|
Tread (mm) |
2040 |
|
|
Kerb mass(Kg) |
7000 |
|
|
Min. turning diameter(m) |
24 |
|
|
Min. ground clearance |
360 |
|
|
Main configuration parameters |
||
|
Axles |
BPW12T, Germany, 3 axles |
|
|
Towing pin |
JOST, 50mm or 90mm |
|
|
suspension |
BPW brand triple air suspension |
|
|
Trailer tyre |
425/65R22.5 radial tire, 6 |
|
|
Brake system |
dual circuit air brake, Service brake, Parking brake, emergency brake |
|
|
ABS |
WABCO made, America |
|
|
Tank body parameter |
||
|
Tank actual volume(m3) |
40 |
|
|
Tank actual dimension(mm) |
11640×φ2210 |
|
|
Tank material |
Aluminum alloy, optional for stainless steel, aluminum, etc. |
|
|
Discharge |
aluminum alloy DN80 |
|
|
Discharge rubber hose |
2 set, 4m length, ball valve accord with drift diameter |
|
|
bottom valve |
None |
|
|
Tank mouth |
Two, aluminum alloy, diameter: Φ500 |
|
