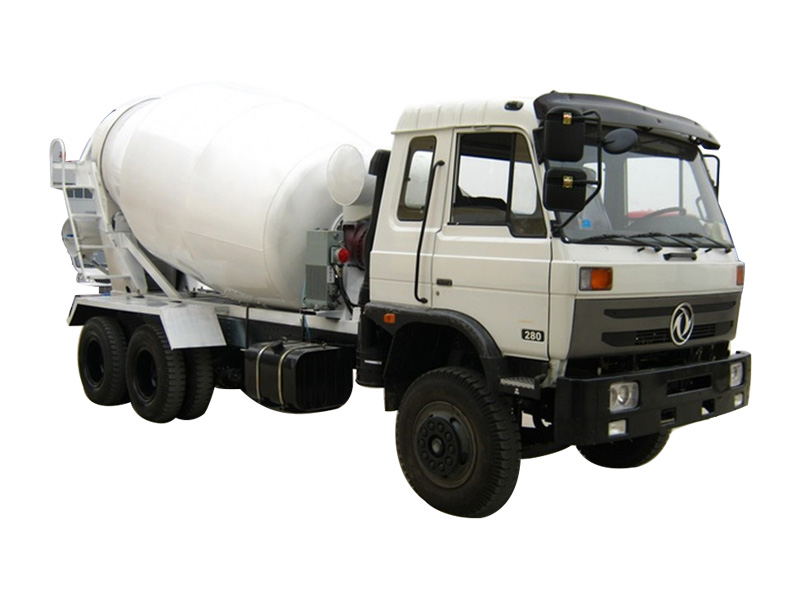

Dongfeng DFD5254GJB 9 m³ Concrete Mixer Truck
- Mixing Volume 9m³
- Chassis Dongfeng chassis
- Engine Yuchai 300hp engine
- Hydraulic pump, motor Rexroth or Eaton
We're here to help:Easy ways to get the answers you need.
We're here to help:Easy ways to get the answers you need.
Feature
parameter
| Specification | ||
| Drive mode | 6×4 | |
| Chassis model | DFD1254GJ2 | |
| Engine | Model | Yuchi 300hp |
| Max. power(Kw) | 220 | |
| Displacement(ml) | 9839 | |
| Type of fuel | Diesel | |
| Emission Standard | Ⅲ | |
| Gearbox | Fast 9 gears | |
| Tyre | Size | 10.00R20 |
| Air conditioner | A/C | |
| Dimensions | Overall dimension (mm) | 8910,9200,9650×2500×3760 |
| Wheel base (mm) | 3650+1350 | |
| Front/Rear tread(mm) | 1989/1860/1860 | |
| Front/Rear axle(T) | 7T/10T/10T | |
| Appr./Depa. angel (°) | 30/28,30/27,30/26 | |
| Min. ground cleanrance(mm) | 520mm | |
| Mass | Payload(Kg) | 12990 |
| Curb weight(Kg) | 11815 | |
| G.V.W(Kg) | 25000 | |
| Special function | Mixing capacity(m³) | 8 |
| Material of tanker | Q345 | |
| Reducer | Italy PMP | |
| Hydraulic pump | Italy PMP | |
| Hydraulic motor | Italy PMP | |
