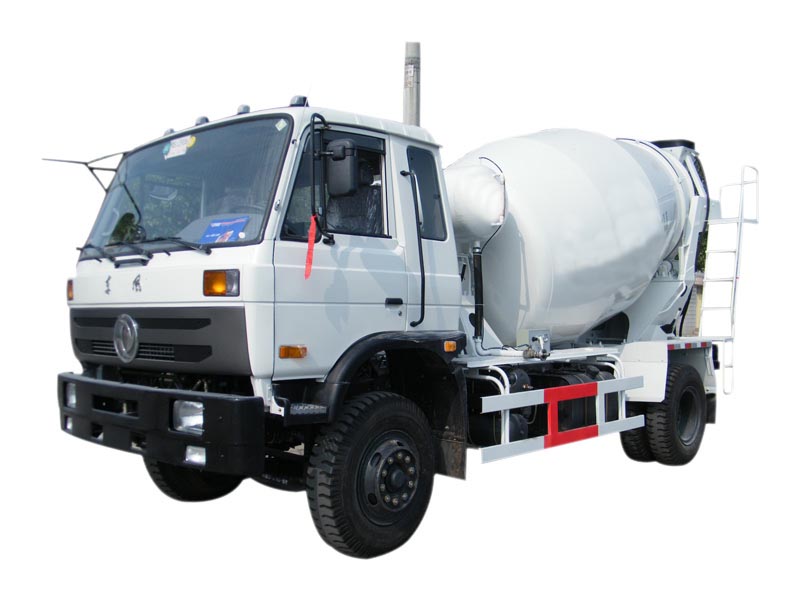

Dongfeng EQ3120 6 m³ Concrete Mixer Truck
- Mixing Volume 4-6m³
- Chassis Dongfeng chassis
- Engine Yuchai
- Hydraulic pump, motor Rexroth or Eaton
We're here to help:Easy ways to get the answers you need.
We're here to help:Easy ways to get the answers you need.
Feature
parameter
| Main Technology Specification | |||
| Product name | 4-6m³DFConarete Mixer | Model | EQ3120GSZ3GJ |
| G.V.W(kg) | 12000 | Mixing capacity(m³) | 1.96 |
| Rated Weight(kg) | 4200 | Overall dimension (mm) | 8000×2490×3750 |
| Curb Weight(kg) | 7605 | Front/Rear tread(mm) | 1250/2250 |
| Cab Seats | 3 | Wheel Base(mm) | 4200+4500 |
| Appr./Depa. angel (°) | 25/13 | Max Speed(km/h) | 85 |
| Wheel (pic) | 2 | ||
| Note | Mixing Tank Volume is 4-6m³. Tank length is 7700mm and its wheel base is 4200mm | ||
| Chassis Specification | |||
| Chassis Model | EQ3120GSZ3GJ | Name of the Chassis | Dump truck chassis |
| Brand | Dongfeng | Tire | 10.00-20,10.00R20 |
| Overall dimension (mm) | 7400×2462×2690 | Front/Rear tread(mm) | 1940/1860 |
| Appr./Depa. angel (°) | 25/28 | Motor Model | YC6J190-33 |
| Number of Spring Leaf | 8/10+7 | Motor Power(Hp) | 140 |
| Fuel | Diesel | Displacement(ml) | 6494 |
| Emission | GB3847-2005,GB17691-2005 | ||
