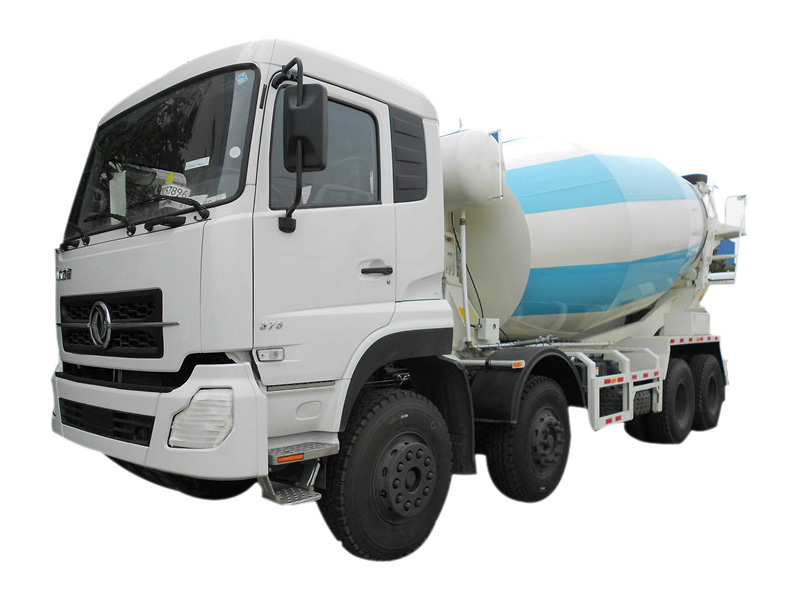

Dongfeng DFL5310GJBA 14 m³ Concrete Mixer Truck
- Mixing Volume 14m³
- Chassis Dongfeng T-LIFT chassis
- Engine Cummins L375 30
- Hydraulic pump, motor Rexroth or Eaton
We're here to help:Easy ways to get the answers you need.
We're here to help:Easy ways to get the answers you need.
Feature
parameter
| Specification | ||
| Drive mode | 8×4 | |
| Engine | Model | L375 30 |
| Type | 6-cylinder in line, turbocharging and inter cooling, mechanical injection pump, bulit-in EGR | |
| Max. power(Kw/rpm) | 276/2200 | |
| Max. torque(N.m/rpm) | 1480/1400 | |
| Displacement(ml) | 8900 | |
| Type of fuel | Diesel | |
| Compression ratio | (16.6±0.5):1 | |
| Cab | D310-S1 | single berth |
| Gearbox | Model | 9JS150T-B |
| Max.torque(N.m) | 1500 | |
| Clutch | Φ430mm | diaphragm spring clutch |
| Frame Height×Width× Thickness(mm) | 300×90×(8+8) | |
| Frame width 940 (front ), Frame width 800 ( rear ) | ||
| Tyre | Size | 12.00-20 |
| Air conditioner | A/C | |
| Dimensions | Overall dimension (mm) | 10955×2500×3990 |
| Wheel base (mm) | 1850+3400+1350 | |
| Front/Rear tread(mm) | 2027/2027,1820/1820 | |
| Appr./Depa. angel (°) | 25/20 | |
| Min. ground cleanrance(mm) | 250 | |
| Mass | Payload(Kg) | 16565 |
| Curb weight(Kg) | 14305 | |
| G.V.W(Kg) | 31000 | |
| Performance | Max. speed(Km/h) | 85 |
| Max. gradeability(%) | 40 | |
| Min. turning diameter(m) | 20 | |
| Fuel consumption(L/100Km) | 38 | |
| Special function | Mixing capacity(m³) | 14 |
| Angel of inclination of mixing drum(°) | 13 | |
| Geometric volume(m³) | 19.2 | |
| Filling ratio(%) | 58 | |
| Feeding speed(m³/min) | ≥3 | |
| Discharge speed(m³/min) | ≥2 | |
| Residual ratio(%) | ＜0.8 | |
| Collapsed degree range(mm) | 40-230 | |
| Hydraulic pump | MA4VG90, Italy | |
| Hydraulic motor | MF090W, Italy | |
| Decelerator | 577L3131AX1A, Italy | |
