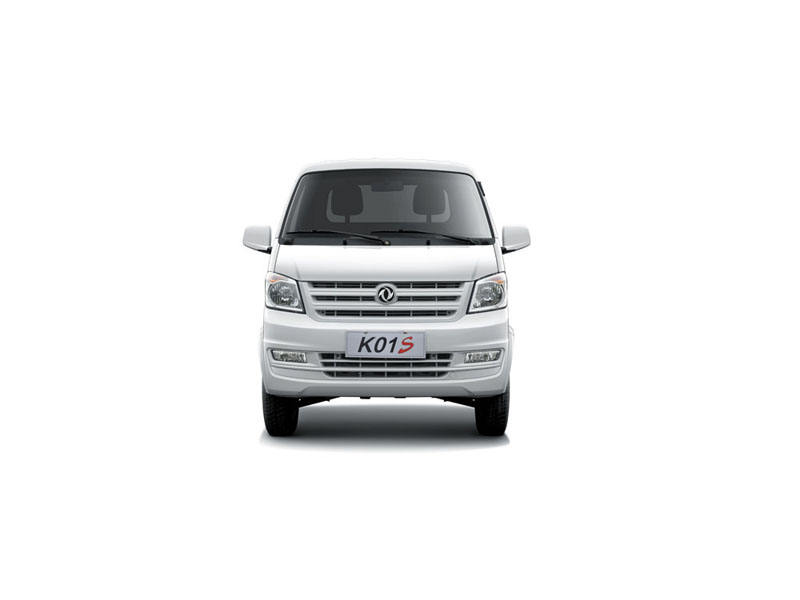

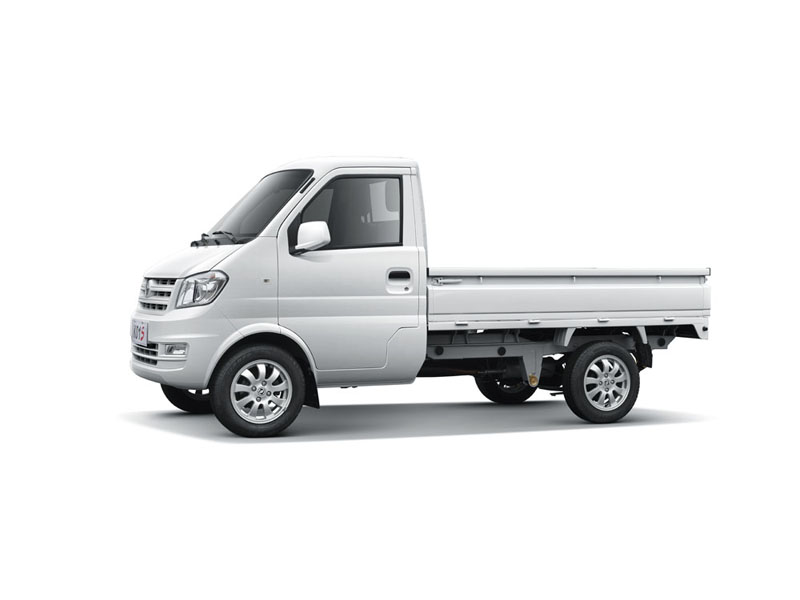

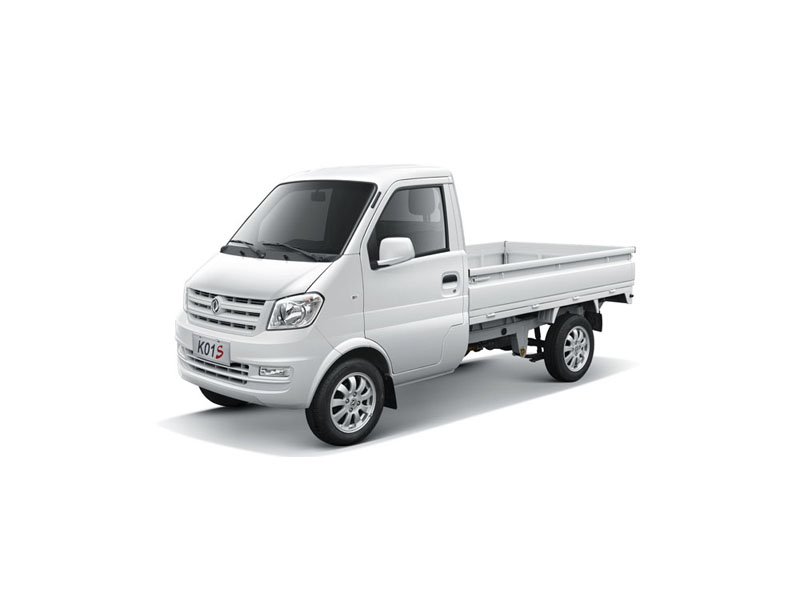

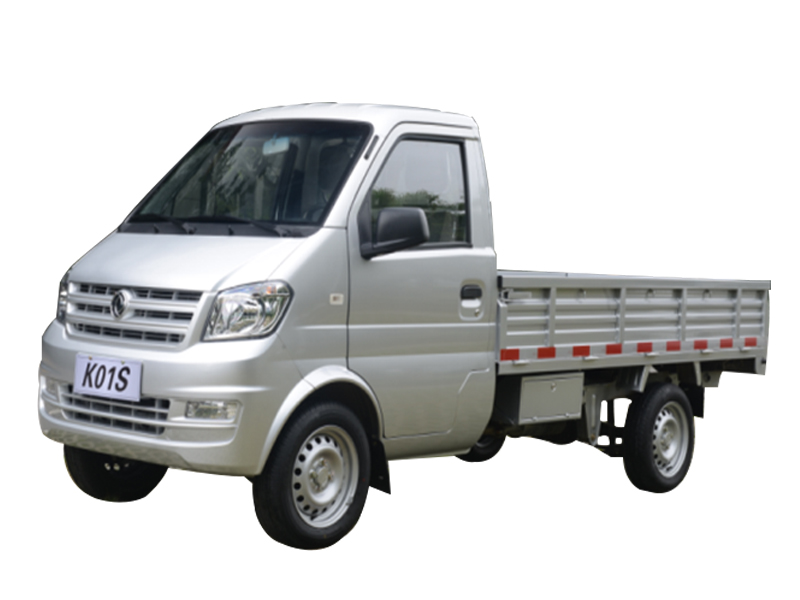

Dongfeng K01S 1-2T Mini Truck
- Chassis Dongfeng chassis
- Loading capacity 1-2T
We're here to help:Easy ways to get the answers you need.
We're here to help:Easy ways to get the answers you need.
Feature
parameter
|
Dimension &Mass |
||
|
L*W*H (mm) |
3970×1560×1825 |
4435×1560×1825 |
|
Cargo Size(mm) |
2300×1500×340 |
2700×1500×340 |
|
Wheelbase (mm) |
2515 |
2760 |
|
Tread(Front/Rear) (mm) |
1310/1310 |
|
|
Curb Weight（kg） |
880 |
|
|
Gross Weight（kg） |
1920 |
|
|
Seats |
2 |
|
|
Min.turning diameter (m) |
≤9.8 |
|
|
Max.gradeability(%) |
≥30 |
|
|
■Engine |
||
|
Engine Model |
AF11-05 |
DK12-01 |
|
Engine Position |
Middle Positioned |
|
|
Engine Type |
Four Cylinders in Line, Four-strokes, Water Cooling, DOHC, Petrol Engine With Electric Control Fuel Injection. |
|
|
Emission standard |
National Standard IV /Euro 5B+ |
|
|
Displacement (cc) |
1050 |
1206 |
|
Power (kw) |
47 |
64 |
|
Max torque (N.m) |
91 |
108.5 |
|
Fuel Tank Capacity (L) |
40 |
|
|
Gear Box |
5 MT |
|
|
Max Speed(km/h) |
110 |
115 |
|
Fuel Consumption(L/100km) |
7.1 |
7.5 |
|
■ Chassis |
||
|
Braking System |
Front disk & Rear drum, Dual Circuit Hydraulic Braking System |
|
|
Driving Model |
Rear-wheel drive |
|
|
Front/Rear Suspension |
Macpherson Independent Suspension, Five-bar Rear Semi-independent Suspension. |
|
