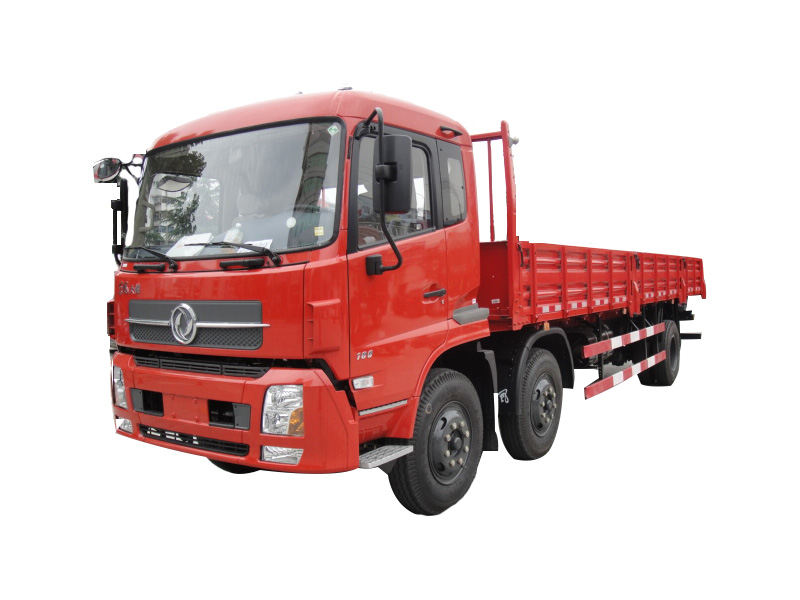

Dongfeng Kingrun DFL1160 6x2 Mid-Duty Cargo Truck
- Chassis Dongfeng chassis
- Engine Cummins engine
- Gearbox FAST gearbox
- Loading capacity 50-80T
We're here to help:Easy ways to get the answers you need.
We're here to help:Easy ways to get the answers you need.
Feature
parameter
| Drive mode | 6×2 | |
| Engine | Model | Cummins B190 33 |
| Type | 6-cylinder in line, turbocharging, inter cooling, mechanical injection pump, built-in EGR | |
| Max. power(Kw/rpm) | 140/2500 | |
| Max. torque(N.m/rpm) | 670/1300-1500 | |
| Cylinder bore ×Stroke(mm) | 102×120 | |
| Displacement(ml) | 5900 | |
| Type of fuel | Diesel | |
| Compression ratio | (17.3±0.5）:1 | |
| Cab | D530 | one and a half rows |
| Capacity | 3 persons | |
| Gearbox | Type | DF6S900(1) |
| Max. torque(N.m) | 900 | |
| Clutch | Φ395mm | push-type diaphragm spring clutch |
| Frame H×W× T(mm) | 250×80×(7+4) | |
| Axles | Front axle(Kg) | 3600×2 |
| Rear axle(Kg) | 10000 | |
| No. of spring leaves | 10/10/10+8 | |
| Tyre | Size | 9.00-20 |
| Air conditioner | A/C | |
| Dimensions | Overall dimension(mm) | 11000×2500×2840 |
| Inner dimension(mm) | 8600×2294×600 | |
| Wheel base(mm) | 1700+5100 | |
| Front/Rear tread(mm) | 1913/1913,1860 | |
| App./Dep. angel (°) | 23/12 | |
| Performance | Max. speed(Km/h) | 90 |
| Max. gradeability(%) | 30 | |
| Min. turning diameter(m) | 17 | |
| Mass | Payload(Kg) | 13,000 |
| Curb weight(Kg) | 7,850 | |
| G.V.W(Kg) | 20,860.00 | |
