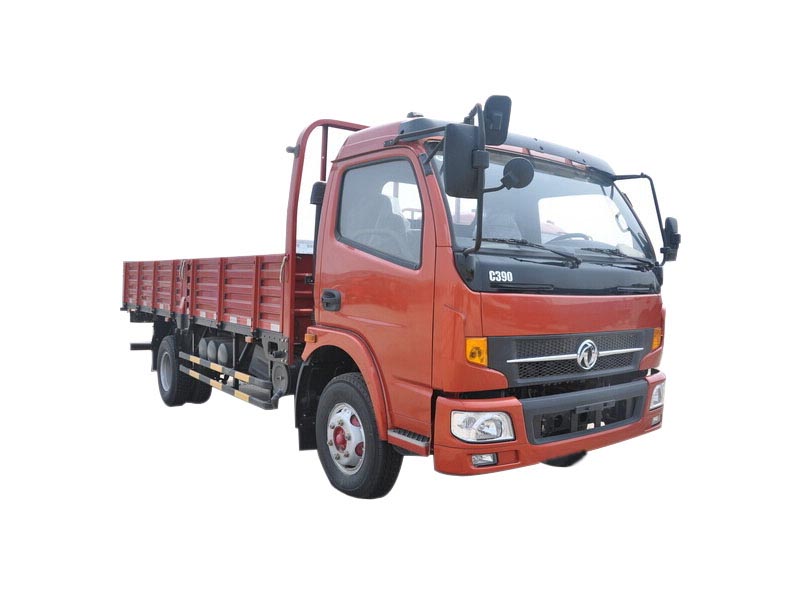

Dongfeng Captain 4x2 5-8T Light Cargo Truck
- Chassis Dongfeng chassis
- Engine Cummins engine
- Loading capacity 5-8T
We're here to help:Easy ways to get the answers you need.
We're here to help:Easy ways to get the answers you need.
Feature
parameter
| Cabin | Single Cab | Single Cab |
| Dimension(mm) | ||
| Overall | 6400x2400x2500 | 7100*2400*2500 |
| Cargo Body | 4150 x1990 x450 | 5000x2050x550 |
| Wheel Base(mm) | 3300 | 3800 |
| Tread(F/R)(mm) | 1586/1530 | 1750/1586 |
| F/R suspension | 1115/1580 | 1210/1960 |
| Weight(kg) | ||
| Curb Weight(kg) | 2750 | 3645 |
| Payload(Kg) | 5000 | 6000 |
| G.V.W(kg) | 6850 | 8125 |
| Engine | ||
| Engine Model | EQB125-30 | EQB125-30 |
| Seris | Cummins B series | Cummins B series |
| Engine Manufacturer | Dongfeng Cummins Engine Co., Ltd. | Dongfeng Cummins Engine Co., Ltd. |
| Adaptation Scope | Truck Engine | Truck Engine |
| Intake type | Supercharge and intercooling | Supercharge and intercooling |
| Number of Cyllinders | 6 | 6 |
| Fuel Type | Diesel | Diesel |
| Cylinder Arrange Pattern | In line | In line |
| Displacement | 3.9L | 3.9L |
| Emission Standard | Euro 3 | Euro 3 |
| Max.power(hp) | 125hp | 125hp |
| Max.torque(N.m) | 410N.m | 410N.m |
| Max.torque rotate speed | 1500RPM | 1500RPM |
| Engine Type | 6 cylinder In line, air intake preheating device, High-power starter of 6.6KW, thoroughly improve the engine cold start, oil-saving with strong power | 6 cylinder In line, air intake preheating device, High-power starter of 6.6KW, thoroughly improve the engine cold start, oil-saving with strong power |
| Engine Net Weight(kg) | 350 | 350 |
| Engine Dimension(mm) | 810x720x820 | 810x720x820 |
| Compression Ratio | 17.3:1 | 17.3:1 |
| Bore x Stroke (mm) | 102x120 | 102x120 |
| Performance | ||
| Max Speed(kg/h) | 105 | 105 |
| Max Gradeability | 30 | 30 |
| Min Turning Radius(m) | 7.5 | 7.5 |
| Power steering | Equipped | Equipped |
| Brake | air | air |
| Battery | 24V | 24V |
| Tire | 7.5R16 | 7.5R16 |
| Cabin | ||
| Heater | Equipped | Equipped |
| Air conditioner | Optional | Optional |
| Centrul Lock and Power Window | Optional | Optional |
